Tools of Recombinant DNA Technology - Cloning Vectors

Advertisements

Topics

Estimated time: 14 minutes
CBSE: Class 12

Introduction

  • vector is a DNA molecule that carries foreign DNA into a host cell.
  • It helps replicate and maintain inserted DNA inside the host.
  • Two main types: Plasmids and Bacteriophages.
CBSE: Class 12

Plasmids Vs Bacteriophages

Feature Plasmids Bacteriophages
Basic nature Circular DNA molecules in bacteria  Viruses that infect bacteria
Main use Common cloning vectors in bacteria  Alternative DNA delivery system
Example pBR322  Bacteriophage-based vectors
Student note Easy to remember for boards and NEET  Important as a standard vector category
CBSE: Class 12

Essential Features

Feature Meaning Function Example
Origin of replication (ori) A DNA sequence from where replication begins.  It allows the vector to replicate inside the host cell.  ori region in plasmid vectors
Selectable marker A gene that helps identify transformants and non-transformants.  It allows selection of cells carrying the vector.  Antibiotic resistance genes, such as ampicillin resistance and tetracycline resistance
Cloning site A specific recognition site for restriction enzymes.  It provides the position where foreign DNA can be inserted.  Restriction sites in pBR322
Special host-transfer feature A property that helps transfer DNA into special organisms such as plants or animals.  It allows successful gene transfer beyond bacteria.  Ti plasmid, retroviral vectors
CBSE: Class 12

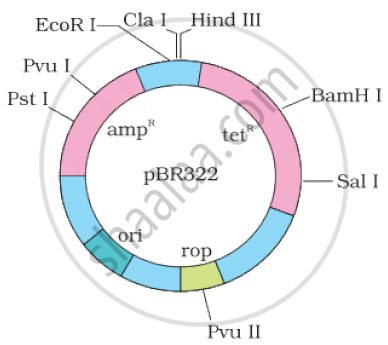

pBR322: A Standard Cloning Vector

  • pBR322 is an important plasmid vector used in cloning.
  • It contains an origin of replication, antibiotic resistance genes, and several restriction sites.
  • Its antibiotic resistance genes make it useful in selection experiments.

CBSE: Class 12

Vectors and Recombinant Selection

Insertional Inactivation:

  • Foreign DNA inserted into a marker gene → disrupts its function
  • Used to identify recombinant vs non-recombinant colonies

Blue–White Selection:

  • Based on the disruption of beta-galactosidase gene
  • Blue colony = gene intact = non-recombinant
  • White colony = gene disrupted = recombinant

Vectors for Plants & Animals:

  • Plants → Ti plasmid (Agrobacterium tumefaciens)
  • Animals → Retrovirus, SV40, Adenovirus, Papilloma virus
CBSE: Class 12

Key Points: Cloning Vectors

  • Vectors (like plasmids and bacteriophages) are DNA molecules used to carry and replicate foreign DNA inside a host cell.
  • An ideal vector must have an origin of replication (ori), selectable markers, and specific cloning sites.
  • pBR322 is a widely used standard bacterial plasmid vector containing these essential features.
  • Recombinant DNA is identified using insertional inactivation (e.g., in blue-white selection, recombinant colonies appear white due to a disrupted gene).
  • Higher organisms require specific vectors: Ti plasmids for plants and modified retroviruses for animals.
