Introduction
When a parallel beam of paraxial light strikes a spherical mirror, the reflected rays do not scatter randomly — they either converge to a single point (concave mirror) or appear to diverge from a single point (convex mirror). This special point, and the distance to it from the mirror surface, defines what we call the focal length.
Focal length is arguably the most important single parameter describing a spherical mirror. The mirror formula, magnification, and image position — all depend on it. The key result proved in this module is:
That is, the focal length of any spherical mirror equals exactly half its radius of curvature.
Definition: Principal Focus
The point F on the principal axis where a parallel paraxial beam of light converges (or appears to diverge from) after reflection is called the Principal Focus of the mirror.
Definition: Focal Plane
The plane perpendicular to the principal axis passing through the principal focus F is called the Focal Plane of the mirror.
Definition: Focal Length
The distance between the Principal Focus F and the Pole P of the mirror is called the Focal Length, denoted by f.
f = \[\overline {PF}\]
Derivation of f = R/2

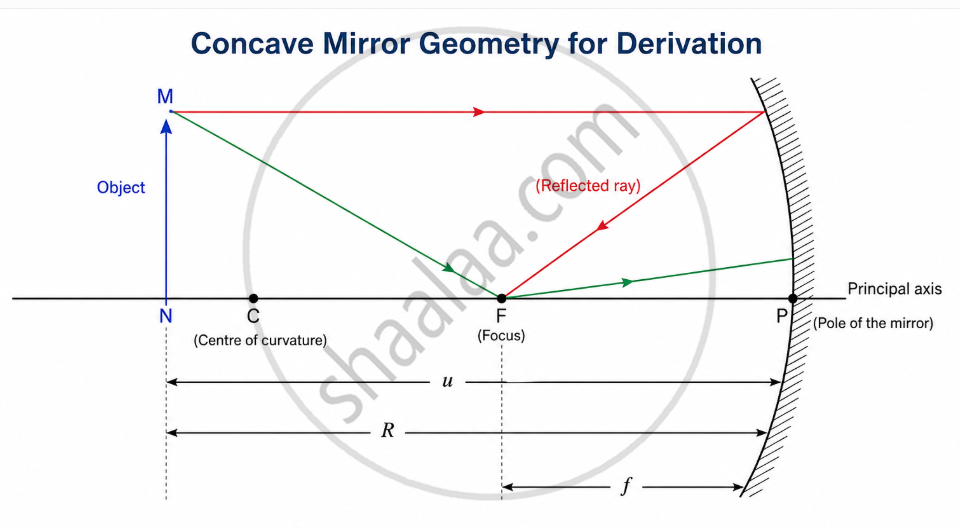

Setup
Consider a concave spherical mirror with:
- P = Pole of the mirror
- C = Centre of curvature (radius of curvature = R = CP)
- F = Principal focus
- A ray parallel to the principal axis strikes the mirror at point M
Step 1: Identify the normal at M
The normal at any point on a spherical mirror passes through the centre of curvature C. Therefore, CM is the normal at M.
Step 2: Apply the law of reflection
Let θ = angle of incidence (between incident ray and CM).
By the law of reflection, the angle of reflection = θ.
Therefore:
- ∠MCP = θ (angle at C in triangle MCF)
- ∠MFP = 2θ (exterior angle of triangle MCF)ncert
Step 3: Set up trigonometric relations
Drop a perpendicular MD from M to the principal axis. Then:
- tan θ = \[\frac {MD}{CD}\] and tan 2θ = \[\frac {MD}{FD}\]
Step 4: Apply small-angle (paraxial) approximation
For paraxial rays, θ is very small. Hence:
- tan θ ≈ θ and tan 2θ ≈ 2θ
Substituting:
- \[\frac {MD}{FD}\] = 2 ⋅ \[\frac {MD}{CD}\]
- FD = \[\frac {CD}{2}\]
Step 5: Apply paraxial approximation to distances
For paraxial rays, M is very close to P, so D is very close to P:
- FD ≈ FP = f and CD ≈ CP = R
Step 6: Final result
Substituting into equation (1):
- f = \[\frac {R}{2}\]
This result holds for both concave and convex mirrors.
