Estimated time: 6 minutes
CBSE: Class 12

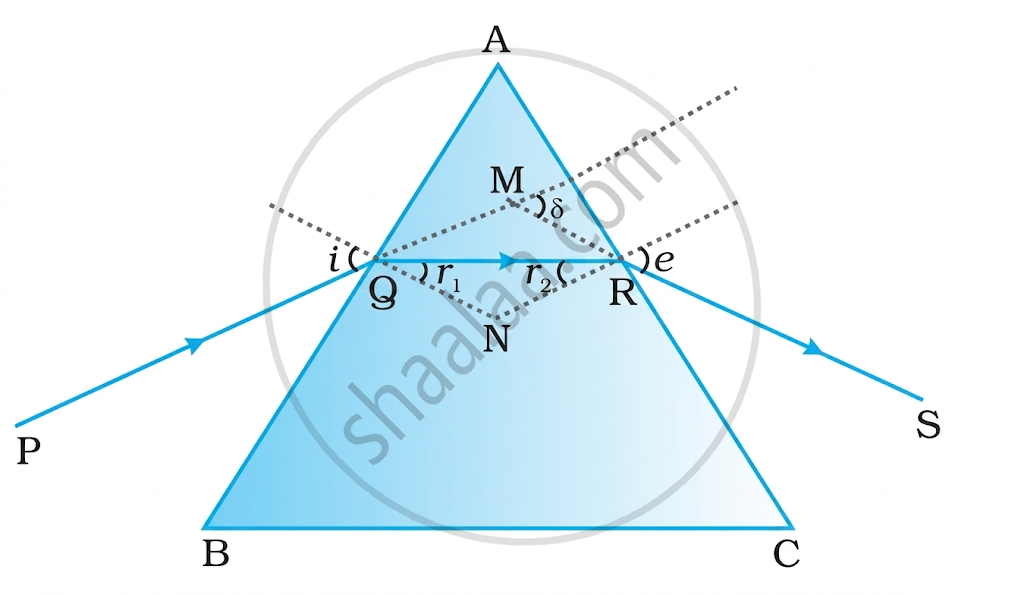

Refraction through a prism
- At the first face AB, the angle of incidence is i, and the angle of refraction is r1.
- At the second face AC, the angle of incidence inside the prism is r2 and the angle of emergence is e.
- The angle between the emergent ray and the direction of the incident ray is called the angle of deviation, δ.
CBSE: Class 12
Relation inside the prism
In the quadrilateral AQNR, two angles are right angles, so the sum of the other two angles is 180 degrees.
From triangle QNR,
- r1 + r2 + ∠QNR = 180∘
Comparing the geometric relations, we get:
- r1 + r2 = A
This is the basic relation inside the prism
CBSE: Class 12
Angle of deviation
The total deviation is the sum of deviations at the two faces.
- δ = (i − r1) + (e − r2)
Therefore,
- δ = i + e − A

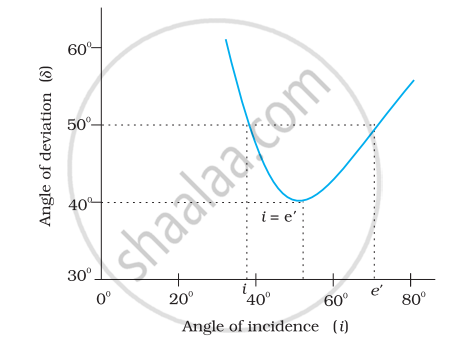

Thus, the angle of deviation depends on the angle of incidence.
CBSE: Class 12
Derivation
At the minimum deviation Dm, the refracted ray inside the prism becomes parallel to its base.
At this condition,
- δ = Dm, i = e
which implies
- r1 = r2
Using r1 + r2 = A,
- 2r = A
- or r = \[\frac {A}{2}\]
Also, from the deviation relation,
- Dm = 2i − A
- or i = \[\frac {A+Dm}{2}\]
These are the standard relations for minimum deviation.
Refractive index of the prism
The refractive index of the prism is given by:
- \[n_{21}=\frac{n_2}{n_1}=\frac{\sin\left(\frac{A+D_m}{2}\right)}{\sin\left(\frac{A}{2}\right)}\]
The angles A and Dm can be measured experimentally.
Therefore, this relation provides a method of determining the refractive index of the material of the prism.
Thin prism
For a small-angle prism, that is, a thin prism, DmD_mDm is also very small.
Then,
- \[n_{21}=\frac{\sin\left(\frac{A+D_m}{2}\right)}{\sin\left(\frac{A}{2}\right)}=\frac{\left(\frac{A+D_m}{2}\right)}{\left(\frac{A}{2}\right)}\]
Hence,
- Dm = (n21 − 1)A
This implies that thin prisms do not deviate light much.
