Definition
If a line or line segment divides an angle into two equal angles, then the line or line segment is called the angle bisector of the given angle.
Properties of an Angle Bisector
Properties of an Angle Bisector:
- An angle bisector divides an angle into two equal parts.
- Any point on the bisector of an angle is equidistant from the sides or arms of the angle.
- A triangle divides the opposite side into the ratio of the measures of the other two sides.

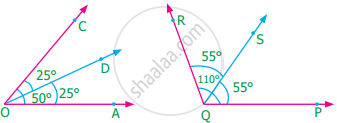

Example:
OD is the angle bisector of ∠COA
QS is the angle bisector of ∠RQP
Activity
To Understand Angle Bisector:
Construction:
1. Draw an angle of any measure on a piece of tracing paper.
2. Fold the paper such that the two arms of the angle overlap exactly.
3. Unfold the paper and observe the crease formed — this feature is the angle bisector.
4. Mark two points, A and B, on the arms of the angle at equal distances from the vertex.
5. Mark points C, P, and T on the fold (angle bisector).
6. Measure the distances from each of these points (C, P, T) to points A and B.
Observation:
1. The fold (crease) divides the angle into two equal parts.
2. Points C, P, and T on the fold are equidistant from points A and B on the arms of the angle.
Conclusion:
1. The angle bisector divides the angle into two equal angles.
2. Any point on the angle bisector is equidistant from both arms of the angle.
