Power Distribution to a House

In following figure shows three bulbs A, B and C each of rating 100 W, 220 V connected to the mains of 220 V. Answer the following:

1. How is the bulb A connected with the mains? At what voltage does it glow?
2. How are the bulbs B and C connected with the mains? At what voltage does the bulb B glow?
3. How is the glow of bulbs A and C affected if bulb B gets fused?
4. How is the glow of bulbs B and C affected if bulb A gets fused?

Which electrical component protects the electric circuit in case of excess current and which can also be used as a switch?

In what unit does the electric meter in a house measure the electrical energy consumed? What is its value in S.I unit?

How should the several electric lamps be connected with the mains so that the switching on or off a lamp has no effect on the operation of other lamps?

Name the wire to which this electrical component is connected in an electric circuit.

Two sets A and B each of four bulbs are glowing in two separate rooms. When one of the bulbs in set A is fused, the other three bulbs also cease to glow. But in set B, when one bulb fuses, the other bulbs continue to glow. Which set of arrangement is preferred in housing circuit and why?

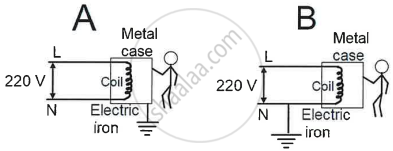

If live wire makes an accidental contact with the metal case, which circuit (A or B) in the diagram, illustrating an electric iron, is considered safe for the user (Assuming the fuse is present in the live wire in both circuits)? Justify your answer.

Two sets A and B of four bulbs each are glowing in two separate rooms. When one of the bulbs in set A is fused, the other three bulbs also cease to glow. But in set B, when one bulb fuses, the other bulbs continue to glow. Explain the difference in the two sets.
