Introduction
Triangle construction is the process of accurately drawing a triangle using basic geometric tools—a ruler (straightedge), a compass, and often a protractor—when given specific measurements. These measurements are typically side lengths or angle measures.
Construction 1: Three Sides Given (SSS)
Example: Construct triangle ABC with
-
AB = 7.6 cm
-
AC = 6 cm
-
CB = 4 cm
Steps:
-
Draw a rough sketch of triangle ABC.
-
Draw the base AB = 7.6 cm.
-
With A as center, draw an arc of radius 6 cm.
-
With B as center, draw another arc of radius 4 cm. Let the arcs intersect at point C.
-
Join AC and BC.

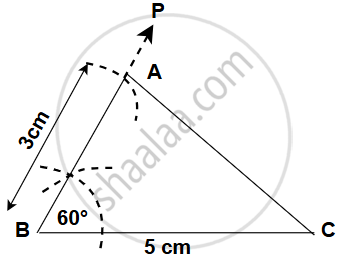

Construction 2: Two Sides and Included Angle Given (SAS)
Example: Construct triangle ABC with
-
AB = 3 cm
-
BC = 5 cm
-
∠ABC = 60°
Steps:
-
Draw a rough sketch of triangle ABC.
-
Draw base BC = 5 cm.
-
At point B, use a protractor to construct ∠ABC = 60°.
-
With B as the centre, draw an arc of radius 3 cm to locate point A on the 60° line.
-
Join AC.

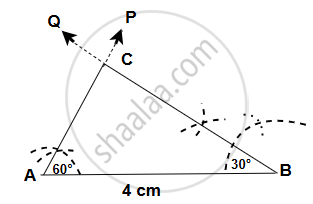

Construction 3: Two Angles and the Included Side Given (ASA)
Example: Construct triangle ABC with
-
AB = 4 cm
-
∠A = 60°
-
∠B = 30°
Steps:

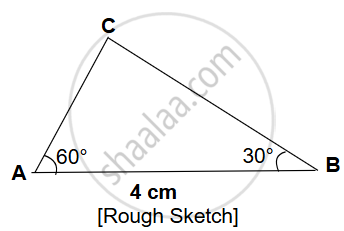

- Draw a rough sketch of triangle ABC.
-
Draw the base AB = 4 cm.
-
At point A, draw a 60° angle (ray AP).
-
At point B, draw a 30° angle (ray BQ).
-
The point where ray AP and ray BQ meet is point C.
-
Join AC and BC.
Key Points Summary
-
The Three Core Rules: Triangles are primarily constructed using the three congruence criteria:
-
SSS (Side-Side-Side: Three sides given).
-
SAS (Side-Angle-Side: Two sides and the included angle given).
-
ASA (Angle-Side-Angle: Two angles and the included side given).
-
-
Planning First: Always begin with a rough sketch to plan the construction steps and visualize the final shape.
-
Accuracy is Key: Use your compass, ruler, and protractor carefully to maintain precise measurements throughout the process.
