Producer's Equilibrium

• A producer is an economic agent who combines land, labour, capital and entrepreneurship to produce goods and services for sale in the market.​
• The main aim of a producer in Class 12 microeconomics is to maximise profit or, if that is not possible, to minimise loss.​

• Producer’s equilibrium is that level of output at which the producer gets maximum profit or minimum loss and has no tendency to change the existing level of output.​
• At this point, any increase or decrease in output will reduce profit, so the firm is in equilibrium.​

To maximise profit, both of the following conditions must hold:

1. First condition: MR = MC

• The producer should produce up to that output level where marginal revenue equals marginal cost.​

2. Second condition: MC is rising after MR = MC

• At the point of equality, MC must be rising and should cut the MR curve from below.​
• If MC is falling where MR = MC, the firm can still increase profit by producing more, so that point is not equilibrium.​

Intuitive rule:

• When MR > MC → producing more increases profit, so the firm should expand output.
• When MR < MC → producing more decreases profit, so the firm should reduce output.
• When MR = MC and MC is rising → profit is at its maximum; the producer is in equilibrium.​

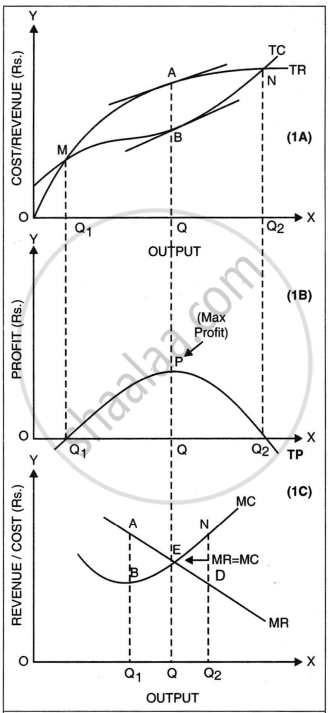

Figure 1A: TR and TC curves​

• On the X‑axis: output; on the Y‑axis: cost/revenue in rupees. TR is the total revenue curve and TC is the total cost curve.​
• At low output OQ₁ and high output OQ₂, TR = TC, so profit is zero at these points.​
• Between OQ₁ and OQ₂, TR is above TC. The vertical distance between TR and TC at any output is profit. This distance is maximum at output OQ, shown by segment AB, so the firm earns maximum profit at OQ.​

Figure 1B: Total profit curve (TP)​

• The TP curve is derived from the TR–TC gap at each output.​
• As output increases from OQ₁ to OQ, TP rises and reaches its highest point P at OQ; beyond OQ it falls and becomes zero at OQ₂. Therefore, OQ is the equilibrium output where total profit is maximum.​

Figure 1C: MR and MC curves​

• On the X‑axis: output; on the Y‑axis: revenue/cost per unit. The MR curve slopes downward and the MC curve is U‑shaped.​
• At output OQ, MR and MC intersect at point E. Here MR = MC, and MC is rising, so both conditions of producer’s equilibrium are satisfied. The firm earns maximum profit at this output.​

• Producer’s equilibrium is the output level where the producer earns maximum profit and has no incentive to change output.​
• Under the TR–TC approach, equilibrium occurs at the output where the vertical gap between TR and TC is greatest.​
• Under the MR–MC approach, equilibrium occurs where MR = MC and MC is rising; MR > MC implies “increase output”, while MR < MC implies “decrease output”.​
