Question
Distinguish between diamagnetic and paramagnetic substances.
Advertisements
Solution
| Sr. No. | Diamagnetic substance | Paramagnetic substance |
| 1. | In an external magnetic field, a substance gets weakly magnetised in the direction opposite to that of the field. | In an external magnetic field, a paramagnetic substance gets weakly magnetised in the same direction as that of the field. |
| 2. | When placed in a non-uniform magnetic field, it tends to move from the stronger to the weaker part of the field. | When placed in a non-uniform magnetic field, it tends to move from the weaker to the stronger part of the field. |
| 3. | It is weakly repelled by a magnet. | It is weakly attracted by a magnet. |
| 4. | Magnetic moment of every atom of a diamagnetic substance is zero. | Every atom of a paramagnetic substance is a magnetic dipole having a certain resultant magnetic moment. |
| 5. | When a rod of diamagnetic substance is suspended in a uniform magnetic field, it comes to rest with its length perpendicular to the direction of the field. | When a rod of paramagnetic substance is suspended in a uniform magnetic field, it comes to rest with its length parallel to the direction of the field. |
| 6. | There is no effect of temperature on diamagnetic substance. | There is effect of temperature on paramagnetic substance. |
APPEARS IN
RELATED QUESTIONS
An iron rod of the area of cross-section 0.1m2 is subjected to a magnetizing field of 1000 A/m. Calculate the magnetic permeability of the iron rod. [Magnetic susceptibility of iron = 59.9, magnetic permeability of vacuum = 4π x 10-7 S. I. unit]
The susceptibility of magnesium at 200 K is 1.8 x 10-5. At what temperature will the susceptibility decrease by 6 x 10-6?
In what way is the behaviour of a diamagnetic material different from that of a paramagnetic, when kept in an external magnetic field?
The susceptibility of a magnetic material is 0·9853. Identify the type of magnetic material. Draw the modification of the field pattern on keeping a piece of this material in a uniform magnetic field.
Explain Curie’s law for a paramagnetic substance.
Which of the following substances are para-magnetic?
Bi, Al, Cu, Ca, Pb, Ni
Which of the following statements is correct for diamagnetic materials?
Choose the correct option:
A rectangular magnet suspended freely has a period of oscillation equal to T. Now it is broken into two equal halves (each having half of the original length) and one piece is made to oscillate freely. Its period of oscillation is T′, the ratio of T′/T is ______.
Choose the correct option:
A magnetising field of 360 Am−1 produces a magnetic flux density (B) = 0.6T in a ferromagnetic material. What is its permeability in Tm A−1?
What happens to a ferromagnetic material when its temperature increases above curie temperature?
Answer in brief.
Discuss the Curie law for paramagnetic material.
A paramagnetic gas has 2.0 × 1026 atoms/m with atomic magnetic dipole moment of 1.5 × 10−23 A m2 each. The gas is at 27°C.
- Find the maximum magnetization intensity of this sample.
- If the gas in this problem is kept in a uniform magnetic field of 3 T, is it possible to achieve saturation magnetization? Why?
A rod of magnetic material of cross-section 0.25 cm2 is placed in a magnetizing field of intensity 4000 A/m-1. The magnetic flux passing through the rod is 25 × 10-6 Wb. Find out
(a) relative permeability
(b) magnetic susceptibility and
(c) magnetisation of the rod.
A domain in a ferromagnetic substance is in the form of a cube of side 1 µm. If it contains 8 × 1010 atoms and each atomic dipole has a dipole moment of 9 × 10-24 Am2 then the magnetisation of the domain is ______.
For a paramagnetic substance, the magnetic susceptibility is ______.
The susceptibility of a magnetic material is positive and small. The material is ______.
The magnetic susceptibility of a paramagnetic material at - 73 °C is 0.0075. Its value at -173 °C will be ______.
There are three needles 'N1', 'N2' and 'N3' made of a ferromagnetic, a paramagnetic and a diamagnetic substance respectively. When a magnet is brought close to them, then it will ____________.
The materials having negative magnetic susceptibility are ____________.
Above the curie temperature the susceptibility of ferromagnetic substance varies ____________.
A small quantity of paramagnetic liquid is taken in a watch - glass and kept on two dissimilar magnetic poles. The liquid ____________.
The earth’s field departs from its dipole shape substantially at large distances (greater than about 30,000 km). What agencies may be responsible for this distortion?
A short bar magnet has a magnetic moment of 0.48 J T−1. Give the direction and magnitude of the magnetic field produced by the magnet at a distance of 10 cm from the centre of the magnet on
- the axis,
- the equatorial lines (normal bisector) of the magnet.
Magnetic field lines are always nearly normal to the surface of a ferromagnet at every point. (This fact is analogous to the static electric field lines being normal to the surface of a conductor at every point.) Why?
Nickel shows ferromagnetic property at room temperature. If the temperature is increased beyond curie temperature, then it will show ______.
The given figure represents a material which is ______.
Assertion: The ferromagnetic substance do not obey Curie’s law.
Reason: At Curie point a ferromagnetic substance start behaving as a paramagnetic substance.
The coercivity of a small magnet where the ferromagnet gets demagnetized is 3 × 103 Am–1. The current required to be passed in a solenoid of length 10 cm and number of turns 100, so that the magnet gets demagnetized when inside the solenoid, is ______.
Which of the following property shows the property of ferromagnetic substances?

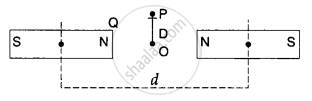

Two identical bar magnets are fixed with their centres at a distance d apart. A stationary charge Q is placed at P in between the gap of the two magnets at a distance D from the centre O as shown in the figure. The force on the charge Q is ______.
The magnetic susceptibility for diamagnetic materials is ______.
Earth's magnetic field analyses has a horizontal component except at:-
A hydrogen atom is paramagnetic. A hydrogen molecule is
For a diamagnetic material
If a charged particle at rest experience no electromagnetic force
A long solenoid has 1000 turns per metre and carries a current of 1 A. It has a soft iron core of µr = 1000. The core is heated beyond the Curie temperature, Tc.
- The H field in the solenoid is (nearly) unchanged but the B field decreases drastically.
- The H and B fields in the solenoid are nearly unchanged.
- The magnetisation in the core reverses direction.
- The magnetisation in the core diminishes by a factor of about 108.
Essential difference between electrostatic shielding by a conducting shell and magnetostatic shielding is due to ______.
- electrostatic field lines can end on charges and conductors have free charges.
- lines of B can also end but conductors cannot end them.
- lines of B cannot end on any material and perfect shielding is not possible.
- shells of high permeability materials can be used to divert lines of B from the interior region.
A permanent magnet in the shape of a thin cylinder of length 10 cm has M = 106 A/m. Calculate the magnetisation current IM.
Explain quantitatively the order of magnitude difference between the diamagnetic susceptibility of N2 (~5 × 10–9) (at STP) and Cu (~10–5).
If the magnetizing field on a ferromagnetic material is increased, its permeability ______.
- Assertion (A): Diamagnetic substances exhibit magnetism.
- Reason (R): Diamagnetic materials do not have a permanent magnetic dipole moment.
Which of the following has a permeability less than that of free space?
Explain the origin of paramagnetism on the basis of atomic structure.
Explain the Domain theory in brief.
