Question
What do you understand by the following term as applied to screw gauge?
Zero error
Advertisements
Solution
Zero error: If the zero of the main scale does not coincide with zero of circular scale on bringing the screw end in contact with the stud, the screw gauge is said to have zero error.
APPEARS IN
RELATED QUESTIONS
How can the least count of a screw gauge be decreased?
A micrometre screw gauge has a positive zero error of 7 divisions, such that its main scale is marked in 1/2 mm and the circular scale has 100 divisions. The spindle of the screw advances by 1 division complete rotation.
If this screw gauge reading is 9 divisions on the main scale and 67 divisions on the circular scale for the diameter of a thin wire, calculate
- Pitch
- L.C.
- Observed diameter
- Corrected diameter
For what range of measurement is micrometre screw gauge used?
What do you understand by the following term as applied to micrometre screw gauge?
Sleeve scale
Find the volume of a book of length 25 cm, breadth 18 cm and height 2 cm in m3.
State whether the following statement is true or false by writing T/F against it.
The diameter of a wire can be measured more accurately by using vernier calipers than by a screw gauge.
State whether the following statement is true or false by writing T/F against it.
The least count of a screw gauge can be lowered by increasing the number of divisions on its thimble.
What is the least count in the case of the following instrument?
vernier calipers

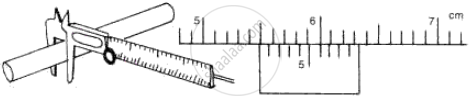

The following diagrams (Fig. 5) show the use of a vernier caliper under three different situations. Study the diagrams carefully and note down the vernier readings in each case.
