рдкреНрд░рд╢реНрди
With the help of a labelled diagram, show that the balancing condition of a Wheatstone bridge is
`R_1/R_2 = R_3/R_4` where the terms have their usual meaning.
Obtain the balancing condition in the case of Wheatstone’s network.
Advertisements
рдЙрддреНрддрд░
Four resistances P, Q, R and S are connected to form a quadrilateral ABCD as shown in the following figure. A battery of emf ε along with a key, is connected between points A and C such that point A is at higher potential with respect to point C. A galvanometer of internal resistance G is connected between points B and D.
When the key is closed, current I flows through the circuit. It divides into I1 and I2 at point A. I1 is the current through P, and I2 is the current through S. The current I1 gets divided at point B. Let Ig be the current flowing through the galvanometer. The currents flowing through Q and R are respectively (I1 – Ig) and (I2 + Ig),
I = I1 + I2 ...(1)
Consider the loop ABDA. Applying Kirchhoff’s voltage law in the clockwise sense shown in the loop, we get
–I1P – IgG + I2S = 0 ...(2)
Applying Kirchhoff's voltage law to loop BCDB in a clockwise sense, we get,
–(I1 – Ig)Q + (I2 + Ig)R + IgG = 0 .....(3)
From these three equations (Eq. (1), (2), (3), we can find the current flowing through any branch of the circuit.
A special case occurs when the current passing through the galvanometer is zero. In this case, the bridge is said to be balanced. The condition for the balance is Ig = 0. This condition can be obtained by adjusting the values of P, Q, R and S. Substituting Ig = 0 in Eq. (2) and Eq. (3) we get,
–I1P + I2S = 0 ∴ I1P = I2S ...(4)
–I1Q + I2R = 0 ∴ I1Q = I2R ...(5)
Dividing Eq. (4) by Eq. (5), we get
`∴ (I_1 P)/(I_1 Q) = (I_1 S)/(I_2 R)`
`therefore P/Q = S/R`
APPEARS IN
рд╕рдВрдмрдВрдзрд┐рдд рдкреНрд░рд╢реНрди
What should be the value of R in the figure for which the current in it is zero?
Choose the correct:
Four resistances 10 Ω, 10 Ω, 10 Ω and 15 Ω form a Wheatstone’s network. What shunt is required across 15 Ω resistor to balance the bridge
In Wheatstone’s meter-bridge experiment, the null point is obtained in the middle one-third portion of the wire. Why is it recommended?
Four resistances 4 тДж, 8тДж, XтДж and 12тДж are connected in a series to form Wheatstone’s network. If the network is balanced, the value of X is ______.
In a meter bridge, two unknown resistances R and S, when connected between the two gaps, give a null point is 60 cm from one end. What is the ratio of R and S?
Explain with a neat circuit diagram. How you will determine the unknown resistances using a meter bridge.
In a meter bridge, the balance point is found to be at 39.5 cm from the end A when the resistor R is 12.5 тДж (right gap).
a) Determine the resistance of X (left gap).
b) Determine the balance point of the bridge if X and R are interchanged?
c) What happens if the galvanometer and cell are interchanged at the balance point of the bridge?
The current which flows in a galvanometer of Wheatstone bridge is directly proportional to ______
Two wires A and B of equal lengths are connected in left and right gap of a meter bridge, null point is obtained at 40 cm from left end. Diameters of the wire A and B are in that ratio 3 : 1. The ratio of specific resistance of A to the of B is ____________.
In a Wheatstone bridge, when the potentials at points B and D are the same, then the current through the galvanometer ______
In a metre bridge, the gaps are closed by two resistances P and Q and the balance point is obtained at 40 cm. When Q is shunted by a resistance of 10 Ω, the balance point shifts to 50 cm. The values of P and Q are ______
In the circuit shown, a metre bridge is in its balanced state. The metre bridge wire has a resistance 0.1 ohm/cm. The value of unknown resistance X and the current drawn from the battery of negligible resistance are ____________.
With a resistance of 'X' in the left gap and a resistance of 9 Ω in the right gap of a meter bridge, the balance point is obtained at 40 cm from the left end.
In what way and to which resistance 3 Ω resistance be connected to obtain the balance at 50 cm from the left end?
The metre bridge works on the principle of ______.
In the metre bridge experiment shown in the figure, the balance length AC corresponding to null deflection of the galvanometer is x. What would be the balance length if the radius of the wire AB is doubled?
In Wheatstone's bridge P = 7 ohm, Q = 12 ohm, R = 3 ohm and S = 8 ohm. How much resistance must be put in parallel to the resistance S to balance the bridge?
On interchanging the resistances, the balance point of a metre bridge shifts to the left by 10 cm. The resistance of their series combination is 1 k`Omega`. How much was the resistance on the left slot before interchanging the resistances?
In Wheatstone's network p = 2 `Omega` , Q = 2 `Omega`, R = 2 `Omega` and S = 3 `Omega`. The resistance with which S is to be shunted in order that the bridge may be balanced is ______.
ln the metre bridge experiment, one metre long wire acts as ____________.
The resistances in left and right gap of a metrebridge are 20 `Omega` and 30 `Omega` respectively. When the resistance in the left gap is reduced to half its value, the balance point shifts by ______.
When the value of R in the balanced Wheatstone bridge, shown in the figure, is increased from 5 `Omega` to 7 `Omega`, the value of s has to be increased by 3 `Omega` in order to maintain the balance. What is the initial value of S?
In following figure, a current of 1.4 A flows towards the bridge circuit. The current in 2 n resistor is ______.

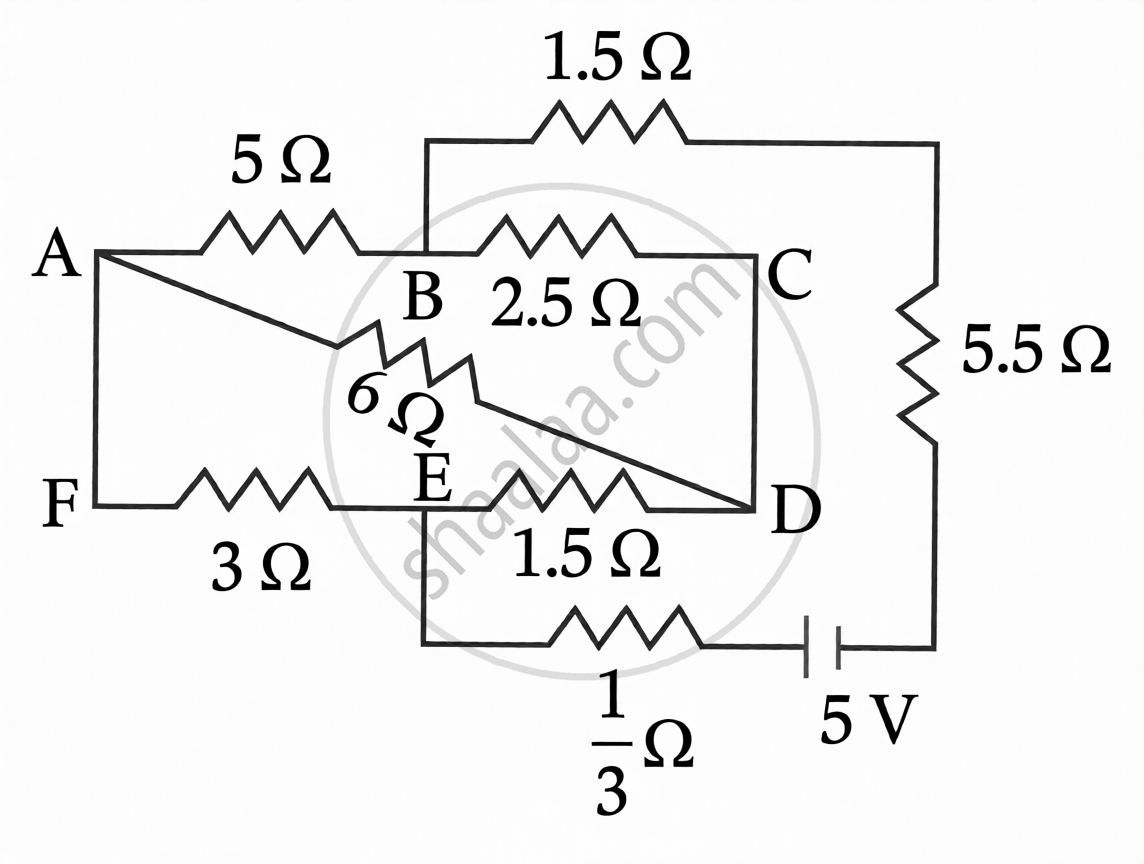

The potential difference between the points A and B in the electric circuit shown is ______.
