Motional Electromotive Force (e.m.f.)

Advertisements

Topics

Estimated time: 13 minutes
CBSE: Class 12
Maharashtra State Board: Class 11

Definition: Motional emf

The emf induced across the ends of a conductor due to its motion in a magnetic field is called motional emf.

CBSE: Class 12

Formula: Motional EMF

e = Blv

  • B = magnetic field
  • l = length of conductor
  • v = velocity
CBSE: Class 12

Derivation of Motional EMF

Method 1: Using Faraday's Law

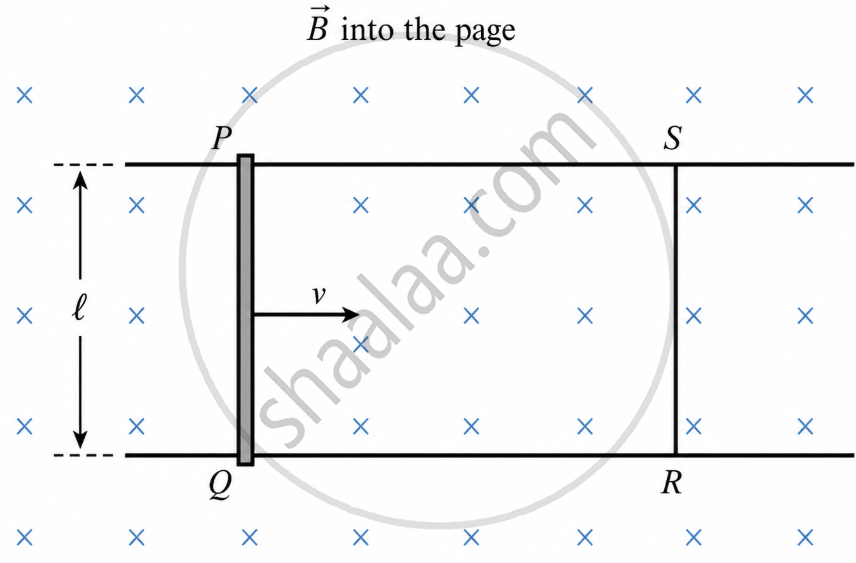

Let the rod move a distance dx in time dt:

dΦ = B ⋅ l ⋅ dx
e = \[-\frac{d\Phi}{dt}=-B\cdot l\cdot\frac{dx}{dt}=-Blv\]

The magnitude of the induced EMF:

e = Blv   ...(1)

Method 2: Using Lorentz Force

Each free electron in the moving rod experiences the Lorentz force:

F = qvB (\[\text{since } \vec{v} \perp \vec{B}\])

This force acts as the "EMF agent" that does work W in moving charge q from one end to another across length l:

e = ​\[\frac{W}{q}=\frac{F\cdot l}{q}=\frac{qvB\cdot l}{q}\] = Blv

Both methods give the same result, confirming Eq. (1).

CBSE: Class 12

Conditions for Motional EMF

  • The conductor must be moving relative to the magnetic field (or the field must be changing)
  • The conductor's velocity must have a component perpendicular to both \[\vec{B}\] and \[\vec{l}\]
  • If \[\vec v\] || \[\vec B\] → No EMF (no force on charges perpendicular to motion)
  • If \[\vec v\] || \[\vec l\] → No EMF (no effective length component)
  • For maximum EMF: \[\vec{v} \perp \vec{B} \perp \vec{l}\] all mutually perpendicular
CBSE: Class 12

Example 1

Setup: A metallic rod of length 1 m is hinged at the centre of a circular metallic ring of radius 1 m. It rotates at 50 rev/s in a uniform magnetic field B = 1 T directed parallel to the axis of rotation (i.e., perpendicular to the plane of the rod).

What's being asked: EMF between the centre (hinge) and the rim (ring).

Core idea: As the rod spins, each small element dr at distance r from the centre moves with velocity v = ωr. The motional EMF across that tiny element is dε = Bv dr = Bωr dr. Integrating from 0 to R:

ε = \[\int_0^RB\omega rdr=\frac{1}{2}B\omega R^2\]

Substituting values:

ω = 2π × 50 = 100π rad/s
ε = \[\frac {1}{2}\] × 1 × 100π × (1)2 = 50π ≈ 157 V
CBSE: Class 12

Example 2

Setup: A wheel has 10 metallic spokes, each 0.5 m long. It rotates at 120 rev/min in a plane normal to Earth's horizontal magnetic field HE = 0.4 G.

What's being asked: Induced EMF between the axle (centre) and the rim.

Step 1 — Convert units:

B = 0.4 G = 0.4 × 10−4 T
ω = \[\frac {120×2π}{60}\] = 4π rad/s

Step 2 — Apply the rotating rod formula:

ε = \[\frac{1}{2}B\omega R^2=\frac{1}{2}\times0.4\times10^{-4}\times4\pi\times(0.5)^2\]
ε = \[\frac{1}{2}\times0.4\times10^{-4}\times4\pi\times0.25\approx{6.28\times10^{-5}\mathrm{V}}\]

The critical insight about the 10 spokes: Each spoke generates the same EMF. But because they are all connected in parallel (all share the same axle and rim), the total EMF equals the EMF of just one spoke — not 10 times. This is a very common exam trap!
