Question
A screw gauge has a least count 0.001 cm and zero error +0.007 cm. Draw a neat diagram to represent it.
Advertisements
Solution

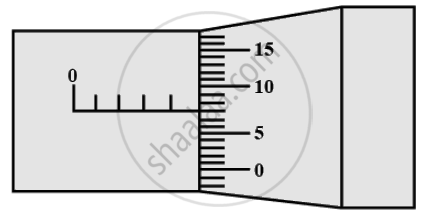

Diagram of a screw gauge with L.C. 0.001 cm and zero error +0.007 cm.
