Question
The capacitors, each of 4 µF are to be connected in such a way that the effective capacitance of the combination is 6 µF. This can be achieved by connecting ______.
Options
All three are in parallel.
All three are in series.
Two of them connected in series and the combination in parallel to the third.
Two of them connected in parallel and the combination in series to the third.
Advertisements
Solution
The capacitors, each of 4 µF are to be connected in such a way that the effective capacitance of the combination is 6 µF. This can be achieved by connecting two of them connected in series and the combination in parallel to the third.
Explanation:
When the capacitors are connected in parallel the equivalent capacitance is given by
`C_{eq} = C_1 + C_2 + C_3`
in series `1/C_{eq} = 1/C_1 + 1/C_2 + 1/C_3`
here `C_1 = C_2 = C_3 = 4muF`
`C_{eq} = 6muF`
So, Ceq = 6µF can only be get if two capacitors are connected in series with the third one in parallel as shown.
`C_{eq} = (4 xx 4)/(4 xx 4) + 4`
= 2 + 4 = 6µF
APPEARS IN
RELATED QUESTIONS
Two capacitors of unknown capacitances C1 and C2 are connected first in series and then in parallel across a battery of 100 V. If the energy stored in the two combinations is 0.045 J and 0.25 J respectively, determine the value of C1 and C2. Also calculate the charge on each capacitor in parallel combination.
A capacitor 'C', a variable resistor 'R' and a bulb 'B' are connected in series to the ac mains in circuit as shown. The bulb glows with some brightness. How will the glow of the bulb change if (i) a dielectric slab is introduced between the plates of the capacitor, keeping resistance R to be the same; (ii) the resistance R is increased keeping the same capacitance?
Suppose a charge +Q1 is given to the positive plate and a charge −Q2 to the negative plate of a capacitor. What is the "charge on the capacitor"?
An ac circuit consists of a series combination of circuit elements X and Y. The current is ahead of the voltage in phase by `pi/4`. If element X is a pure resistor of 100 Ω,
(a) name the circuit element Y.
(b) calculate the rms value of current, if rms of voltage is 141 V.
(c) what will happen if the ac source is replaced by a dc source
Two parallel plate capacitors X and Y, have the same area of plates and same separation between plates. X has air and Y with dielectric of constant 2, between its plates. They are connected in series to a battery of 12 V. The ratio of electrostatic energy stored in X and Y is ______.
Three capacitors each of 4 µF are to be connected in such a way that the effective capacitance is 6µF. This can be done by connecting them:
Capacitors connected in series have ______

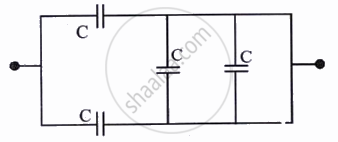

In the circuit shown in figure, initially K1 is closed and K2 is open. What are the charges on each capacitors.
