Derive the expression for magnetic field produced by a current in a circular arc of wire.
Derive an expression for the magnetic field produced by a current in a circular arc of a wire using Biot-Savart law.
Derive an expression for the magnetic field produced at the centre of a circular arc of a wire carrying current I.
Advertisements
Solution
Consider a circular arc of a wire (XY), carrying a current I.
The circular arc XY subtends an angle θ at the centre O of the circle with radius r, of which the arc is a part, as shown in the figure below.
Current-carrying wire of a shape of the circular arc.
Consider length element d`vec l` lying always perpendicular to `vec r`.
Using Biot-Savart law, the magnetic field produced at O is:
`d vec B = mu_0/(4 pi) (I d vec l xx vec r)/r^3`
dB = `mu_0/(4 pi) I (d l r sin 90^circ)/r^3`
= `mu_0/(4 pi) (I d l)/r^2` ...(1)
Equation (1) gives the magnitude of the field. The direction of the field is given by the right-hand rule.
Thus, the direction of each of the dB is into the plane of the paper. The total field at O is:
B = `int dB`
= `mu_0/(4 pi) I int_A^theta (d l)/r^2`
= `mu_0/(4 pi) I int_A^theta (r d theta)/r^2`
= `mu_0/(4 pi) I/r theta` ...(2)
Where the angle θ is in radians.
APPEARS IN
RELATED QUESTIONS
Currents of equal magnitude pass through two long parallel wires having a separation of 1.35 cm. If the force per unit length on each of the wires is 4.76 x 10-2 N, what must be I ?
Two wires shown in the figure are connected in a series circuit and the same current of 10 A passes through both, but in opposite directions. The separation between the two wires is 8 mm. The length AB is 22 cm. Obtain the direction and magnitude of the magnetic field due to current in wire 2 on the following figure segment AB of wire 1. Also, obtain the magnitude and direction of the force on wire 1. [μ0 = 4π × 10-7 T.m/A]
Two long parallel wires, both carrying current I directed into the plane of the page, are separated by a distance R. Show that at a point P equidistant from the wires and subtending an angle θ from the plane containing the wires, the magnitude of the magnetic field is B = `(mu_0)/pi "I"/"R"` sin 2θ. What is the direction of the magnetic field?
A very long straight wire carries a current of 5.2 A. What is the magnitude of the magnetic field at a distance 3.1 cm from the wire?
The magnetic field at a distance of 2.4 cm from a long straight [current-carrying] wire is 16 µT. What is the current through the wire?
The figure shows a cylindrical wire of diameter a, carrying a current I. The current density in the wire is in the direction of the axis and varies linearly with radial distance r from the axis according to the relation J = `"J"_0 "r"/"a"`. Obtain a magnetic field B inside the wire at a distance r from its center.
In the problem, what will be the magnetic field B inside the wire at a distance r from its center, if the current density J is uniform across the cross-section of the wire? Figure shows a section of a very long cylindrical wire of diameter a, carrying a current I. The current density which is in the direction of the central axis of the wire varies linearly with radial distance r from the axis according to the relation J = Jo r/a.
An electron moving in a circular orbit of radius r makes n rotations per second. The magnetic field produced at the centre has magnitude ____________.
A length L of wire carries a steady current I. It is bent first to form a circular plane coil of one turn. The same length is now bent more sharply to give a double loop of smaller radius. The magnetic field at the centre caused by the same current is ______.
The ratio of magnetic field and magnetic moment at the centre of a current carrying circular loop is x. When both the current and radius is doubled then the ratio will be ______.
Two concentric circular coils of six turns each are situated in the same plane. Their radii are 10 cm and 20 cm and they carry respectively 0.1 A and 0.2 A current in same direction. The magnetic field in tesla at the centre is ______.
The ratio of the magnetic field at the centre of a current-carrying circular wire and the magnetic field at the centre of a semi-circular coil made from the same length of wire will be ______.
lf the current flowing in a circular loop is in clockwise direction, then the magnetic induction will be ____________.
The magnetic induction at the centre of a coil made from a wire of length 44 m carrying a current of 0.5 A is nearly ____________.
A wire of length L carrying a current I is bent into a circle. The magnitude of the magnetic field at the centre of the circle is ____________.
A circular arc of radius 'r' carrying current 'I' subtends on angle `pi/16` at its centre. The radius of a metal wire is uniform. The magnetic induction at the centre of circular arc is ____________.
Two concentric circular coils having radii r1 and r2, (r2 << r1) are placed co-axially with centers coinciding. The mutual induction of the arrangement is (Both coils have a single turn) (µ0 = permeability of free space).
Two concentric circular coils of 'n' turns each are situated in the same plane. Their radii are 'a1' and 'a2' (a2 > a1) and they carry currents 'I1' and 'I2' respectively (I1> I2) in opposite direction. The magnetic field at the centre is ____________.
A long wire carrying a steady current is bent into a circle of single turn. The magnetic field at the centre of the coil is 'B'. If it is bent into a circular loop of radius 'r' having 'n' turns, the magnetic field at the centre of the coil for same current is ______.

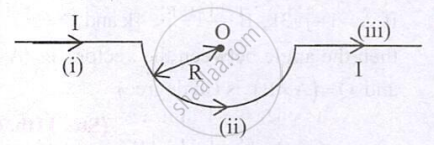

A long thin current (I) carrying wire is bent in the form of a pin as shown in the figure. The magnetic field at point ‘O’ is:
(μ0 = permeability of free space)
