Question
Construct a triangle using the following data: PQ + PR = 10.6 cm, QR = 4.8 cm and ∠R = 45°
Advertisements
Solution
PQ + PR = 10.6 cm, QR = 4.8 cm and ∠R = 45°

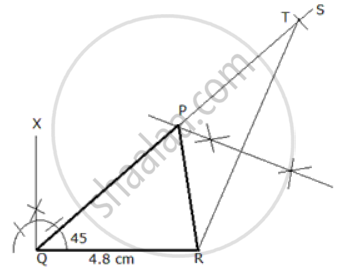

Steps of construction:
1. Draw a line segment QR = 4.8 cm
2. With Q as centre, construct ∠SQR = 45°
3. Cut QT = 10.6 cm on QS.
4. Join TR.
5. Draw perpendicular bisector of TR which cuts QT at P.
6. Join PR.
Thus PQR is the required triangle.
