Question
You are given a circuit as shown in the figure, which consists of the NAND gate. Identify the logic operation carried out by the two. Write the truth table. Identify the gates equivalent to the tow circuit.
Advertisements
Solution
`"Y"_1 = bar"A.A" = bar"A"`
`"Y"_2 = bar"B.B" = bar"B"`
`"Y" = bar("Y"_1."Y"_2) = overline(bar"A".bar"B") = overlineoverline(A) + overlineoverline(B) = "A" + "B"`
The equivalent gate is OR gate
Truth table
| A | B | Y1 | Y2 | Y |
| 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 1 | 0 | 1 |
| 1 | 0 | 0 | 1 | 1 |
| 1 | 1 | 0 | 0 | 1 |
APPEARS IN
RELATED QUESTIONS
You are given the two circuits as shown in following figure. Show that circuit
- acts as OR gate while the circuit
- acts as AND gate.
(a)
(b)
Why are NOR gates considered as universal gates?
Draw a diagram to show how NAND gates can be combined to obtain an OR gate. (Truth table is not, required)
Useful Constants and Relations:
| 1. | Charge of a proton | (e) | =1.6 × 10-19C |
| 2. | Planck's constant | (h) | = 6·6 × 10-34 Js |
| 3. | Mass of an electron | (m) | = 9·1× 10-31 kg |
| 4. | Permittivity of vacuum | (∈0) | =8 · 85 × 10-12 Fm-1 |
| 5. | `(1/(4pi∈_0))` | =9 ×109 mF-1 | |
| 6. | Permeability of vacuum | (μ0) | = 4π × 10-7 Hm-1 |
| 7. | `((mu_0)/(4pi))` | =1 × 10-7 Hm-1 | |
| 8. | Speed of light in vacuum | (c) | = 3× 108 ms-1 |
| 9. | Unified atomic mass unit | (u) |
= 931 MeV |
| 10. | Electron volt | (leV) | = 1.6 × 10-19 J |
With the help of a diagram, show how you can use several NAND gates to obtain an OR gate.
Useful Constants and Relations :
| 1. Speed of Light in Vacuum | (c) = 3.00 x 108 m/s |
| 2. Charge of a proton | (e) = 1.60 x 10-19C |
| 3. Planck's Constant | (h) = 6.6 x 10-34 Js |
| 4. Permeability of vacuum | (μ0) = 4π x 10-7 Hm-1 |
| 5. Electron Volt | (1eV ) = 1.6 x 10 |
| 6. Unified Atomic Mass Unit | (1u) = 931 MeV |
| (π) = 3.14 | |
| ( ln 2 ) = 0.693 |
The outputs of two NOT gates are fed to a NOR gate. Draw the logic circuit of the combination of gates. Write its truth table. Identify the gate equivalent to this circuit.
The current obtained from a simple filterless rectifier is
An oscillator is nothing but an amplifier with
In potential barrier development in a junction diode opposes

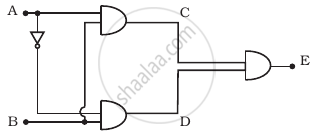

Truth table for the given circuit (Figure) is ______.
