Question
Use the mirror equation to show a convex mirror always produces a virtual image independent of the location of the object ?
Advertisements
Solution

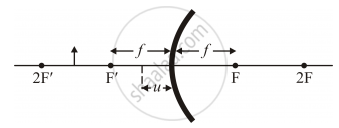

A convex mirror
f > 0; u < 0 (always)
Case I |u| > |f|
We know,
`v =(fu)/(u-f)`
`fu <0 and f-u<0`
`=> v>0 ` virtual image
Case `2|u|<|f|`
`v=(fu)/(u-f) fu<0`
`=> u> 0 u-f<0`
Hence, at all the positions convex mirror will form a virtual image.
