Question
Figure. shows a bar magnet placed on the table top with its north pole pointing towards south. The arrow shows the north-south direction. There are no other magnets or magnetic materials nearby.

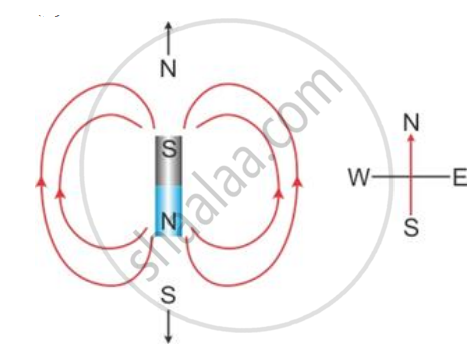

Insert two magnetic field lines on either side of the magnet using arrow head to show the direction of each field line.
Advertisements
Solution
APPEARS IN
RELATED QUESTIONS
State whether the following statement is true of false:
The axis of earth's imaginary magnet and the geographical axis coincide with each other.
A charged particle enters at right angles into a uniform magnetic field as shown:
What should be the nature of charge on the particle if it begins to move in a direction pointing vertically our of the page due to its interaction with the magnetic field?
In a uniform magnetic field, the field lines are:
Draw magnetic field lines produced around a current-carrying straight conductor passing through cardboard. Name, state and apply the rule to mark the direction of these field lines.
Select the correct option:
The magnetic strength of a bar magnet is:
Complete the following diagram of magnets to show the lines of force.
A wire 10 cm long carrying a current of 1.5 A is held in a uniform magneÑic field in which B = 10-3 T. Calculate the force on the wire if it is held perpendicular to the lines of the magnetic field.
"Magnetic field is a physical quantity that has both direction and magnitude." How can this statement be proved with the help of magnetic field lines of a bar magnet?
