Question

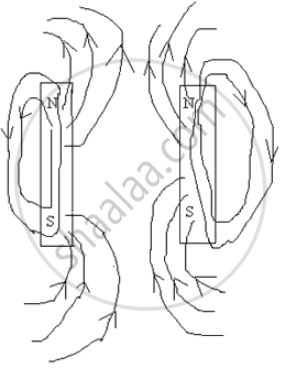

Complete the following diagram of magnets to show the lines of force.
Advertisements
Solution
APPEARS IN
RELATED QUESTIONS
Fill in the following blank with suitable words:
The earth's magnetic field is rather like that of a .......... magnet with its .......... pole in the northern hemisphere.
Copy the figure below which shows a plotting compass and a magnet. Label the N pole of the magnet and draw field line on which the compass lines
What is a natural magnet? State two limitations of a natural magnet.
Explain the following :
The north end of a freely suspended magnetic needle gets attracted towards a piece of soft iron placed a little distance away from the needle.
The intensity of a magnetic field is indicated by the lines of ______.
The magnetic field is the strongest at ____________.
A circular loop placed in a plane perpendicular to the plane of paper carries a current when the key is ON. The current as seen from points A and B (in the plane of paper and on the axis of the coil) is anti clockwise and clockwise respectively. The magnetic field lines point from B to A. The N-pole of the resultant magnet is on the face close to
A wire 10 cm long carrying a current of 1.5 A is held in a uniform magneÑic field in which B = 10-3 T. Calculate the force on the wire if it is held perpendicular to the lines of the magnetic field.
A student fixes a white sheet of paper on a drawing board. He places a bar magnet in the centre and sprinkles some iron filings uniformly around the bar magnet. Then he taps gently and observes that iron filings arrange themselves in a certain pattern.
- Why do iron filings arrange themselves in a particular pattern?
- Which physical quantity is indicated by the pattern of field lines around the bar magnet?
- State any two properties of magnetic field lines.
