Question

XYZ Technologies, Hyderabad is a company that deals with data science and AI projects. They have different divisions ADMIN, SALES, PRODUCTION and SERVICE.

The layout of the Hyderabad branch is:

The management wants to connect all the divisions as well as the computers of each division (ADMIN, SALES, PRODUCTION and SERVICE).

Distance between the divisions are as follows:

ADMIN to SALES	69 m
ADMIN to PRODUCTION	84 m
ADMIN to SERVICE	60 m
SALES to PRODUCTION	110 m
SALES to SERVICE	135 m
PRODUCTION to SERVICE	90 m

Number of computers in each division:

Division	Number of Computers
ADMIN	40
SALES	75
PRODUCTION	120
SERVICE	20

Based on the above specifications, answer the following questions:

1. Suggest the topology and draw the most suitable cable layout for connecting all the divisions in the Hyderabad office.
2. XYZ Technologies is having its head office in USA. Out of LAN, MAN and WAN, which kind of network will be created to connect Hyderabad office with USA Office? Justify your answer.
3. Suggest the division for the placement of server. Explain the reason for your selection.
4. Suggest the placement of Switch/Hub with justification.
5. Where will a repeater be placed in the suggested network layout? Justify your answer.

Answer 1

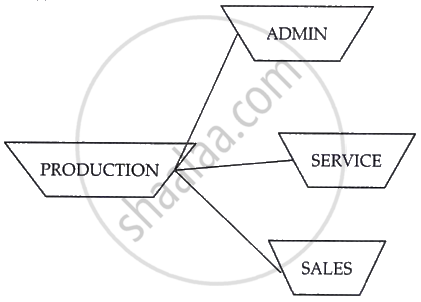

1. Star topology

2. WAN (Wide Area Network): Due to the large distance between Hyderabad and the USA, a WAN is required, as it can cover connections across different countries and continents.
3. The production division is the most suitable location for the server because it has the highest number of computers.
4. A device should be installed in each block since every block contains multiple computers that need network connectivity.
5. A repeater is required when the cable distance exceeds 100 meters in order to prevent signal degradation. Therefore, it should be positioned between sales to production and sales to service.
   Distances to consider:
   • Sales to production = 110 m (repeater required)
   • Sales to service = 135 m (repeater required)
