Question
Solve the following problem :
Following table shows the amount of sugar production (in lac tonnes) for the years 1971 to 1982.
| Year | 1971 | 1972 | 1973 | 1974 | 1975 | 1976 | 1977 | 1978 | 1979 | 1980 | 1981 | 1982 |
| Production | 1 | 0 | 1 | 2 | 3 | 2 | 3 | 6 | 5 | 1 | 4 | 10 |
Fit a trend line to the above data by graphical method.
Advertisements
Solution

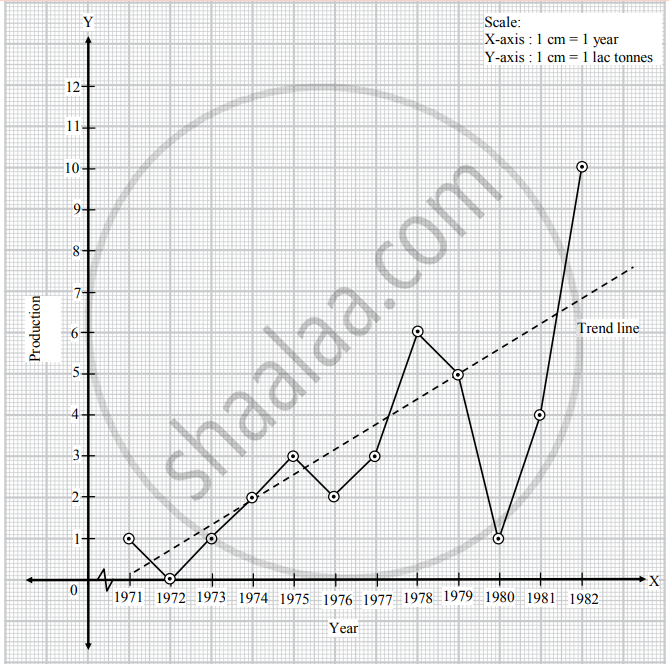

Taking year on X-axis and production on Y-axis, we plot the points for production corresponding to years. Joining these points we get the graph of time series. We fit a trend line as shown in the graph.
APPEARS IN
RELATED QUESTIONS
Fit a trend line to the data in Problem 4 above by the method of least squares. Also, obtain the trend value for the index of industrial production for the year 1987.
Obtain the trend values for the above data using 3-yearly moving averages.
The simplest method of measuring trend of time series is ______.
Fill in the blank :
The method of measuring trend of time series using only averages is _______
Fill in the blank :
The complicated but efficient method of measuring trend of time series is _______.
State whether the following is True or False :
All the three methods of measuring trend will always give the same results.
Solve the following problem :
The following table shows the production of pig-iron and ferro- alloys (‘000 metric tonnes)
| Year | 1974 | 1975 | 1976 | 1977 | 1978 | 1979 | 1980 | 1981 | 1982 |
| Production | 0 | 4 | 9 | 9 | 8 | 5 | 4 | 8 | 10 |
Fit a trend line to the above data by graphical method.
Solve the following problem :
Obtain trend values for the following data using 5-yearly moving averages.
| Year | 1974 | 1975 | 1976 | 1977 | 1978 | 1979 | 1980 | 1981 | 1982 |
| Production | 0 | 4 | 9 | 9 | 8 | 5 | 4 | 8 | 10 |
Solve the following problem :
Fit a trend line to data in Problem 4 by the method of least squares.
Solve the following problem :
Fit a trend line to the data in Problem 7 by the method of least squares.
Following data shows the number of boxes of cereal sold in years 1977 to 1984.
| Year | 1977 | 1978 | 1979 | 1980 | 1981 | 1982 | 1983 | 1984 |
| No. of boxes in ten thousand | 1 | 0 | 3 | 8 | 10 | 4 | 5 | 8 |
Fit a trend line to the above data by graphical method.
Solve the following problem :
Fit a trend line to data in Problem 13 by the method of least squares.
Solve the following problem :
Following table shows the all India infant mortality rates (per ‘000) for years 1980 to 2010.
| Year | 1980 | 1985 | 1990 | 1995 | 2000 | 2005 | 2010 |
| IMR | 10 | 7 | 5 | 4 | 3 | 1 | 0 |
Fit a trend line to the above data by graphical method.
Obtain trend values for data in Problem 19 using 3-yearly moving averages.
Solve the following problem :
Following tables shows the wheat yield (‘000 tonnes) in India for years 1959 to 1968.
| Year | 1959 | 1960 | 1961 | 1962 | 1963 | 1964 | 1965 | 1966 | 1967 | 1968 |
| Yield | 0 | 1 | 2 | 3 | 1 | 0 | 4 | 1 | 2 | 10 |
Fit a trend line to the above data by the method of least squares.
Choose the correct alternative:
Moving averages are useful in identifying ______.
The complicated but efficient method of measuring trend of time series is ______
The method of measuring trend of time series using only averages is ______
State whether the following statement is True or False:
Moving average method of finding trend is very complicated and involves several calculations
The following table gives the production of steel (in millions of tons) for years 1976 to 1986.
| Year | 1976 | 1977 | 1978 | 1979 | 1980 | 1981 | 1982 | 1983 | 1984 | 1985 | 1986 |
| Production | 0 | 4 | 4 | 2 | 6 | 8 | 5 | 9 | 4 | 10 | 10 |
Obtain the trend value for the year 1990
Obtain the trend values for the data, using 3-yearly moving averages
| Year | 1976 | 1977 | 1978 | 1979 | 1980 | 1981 |
| Production | 0 | 4 | 4 | 2 | 6 | 8 |
| Year | 1982 | 1983 | 1984 | 1985 | 1986 | |
| Production | 5 | 9 | 4 | 10 | 10 |
Following table shows the all India infant mortality rates (per ‘000) for years 1980 to 2010
| Year | 1980 | 1985 | 1990 | 1995 |
| IMR | 10 | 7 | 5 | 4 |
| Year | 2000 | 2005 | 2010 | |
| IMR | 3 | 1 | 0 |
Fit a trend line by the method of least squares
Solution: Let us fit equation of trend line for above data.
Let the equation of trend line be y = a + bx .....(i)
Here n = 7(odd), middle year is `square` and h = 5
| Year | IMR (y) | x | x2 | x.y |
| 1980 | 10 | – 3 | 9 | – 30 |
| 1985 | 7 | – 2 | 4 | – 14 |
| 1990 | 5 | – 1 | 1 | – 5 |
| 1995 | 4 | 0 | 0 | 0 |
| 2000 | 3 | 1 | 1 | 3 |
| 2005 | 1 | 2 | 4 | 2 |
| 2010 | 0 | 3 | 9 | 0 |
| Total | 30 | 0 | 28 | – 44 |
The normal equations are
Σy = na + bΣx
As, Σx = 0, a = `square`
Also, Σxy = aΣx + bΣx2
As, Σx = 0, b =`square`
∴ The equation of trend line is y = `square`
Obtain trend values for data, using 3-yearly moving averages
Solution:
| Year | IMR | 3 yearly moving total |
3-yearly moving average (trend value) |
| 1980 | 10 | – | – |
| 1985 | 7 | `square` | 7.33 |
| 1990 | 5 | 16 | `square` |
| 1995 | 4 | 12 | 4 |
| 2000 | 3 | 8 | `square` |
| 2005 | 1 | `square` | 1.33 |
| 2010 | 0 | – | – |
Obtain the trend values for the following data using 5 yearly moving averages:
| Year | 2000 | 2001 | 2002 | 2003 | 2004 |
| Production xi |
10 | 15 | 20 | 25 | 30 |
| Year | 2005 | 2006 | 2007 | 2008 | 2009 |
| Production xi |
35 | 40 | 45 | 50 | 55 |
The following table shows gross capital information (in Crore ₹) for years 1966 to 1975:
| Years | 1966 | 1967 | 1968 | 1969 | 1970 |
| Gross Capital information | 20 | 25 | 25 | 30 | 35 |
| Years | 1971 | 1972 | 1973 | 1974 | 1975 |
| Gross Capital information | 30 | 45 | 40 | 55 | 65 |
Obtain trend values using 5-yearly moving values.
Complete the following activity to fit a trend line to the following data by the method of least squares.
| Year | 1975 | 1976 | 1977 | 1978 | 1979 | 1980 | 1981 | 1982 | 1983 |
| Number of deaths | 0 | 6 | 3 | 8 | 2 | 9 | 4 | 5 | 10 |
Solution:
Here n = 9. We transform year t to u by taking u = t - 1979. We construct the following table for calculation :
| Year t | Number of deaths xt | u = t - 1979 | u2 | uxt |
| 1975 | 0 | - 4 | 16 | 0 |
| 1976 | 6 | - 3 | 9 | - 18 |
| 1977 | 3 | - 2 | 4 | - 6 |
| 1978 | 8 | - 1 | 1 | - 8 |
| 1979 | 2 | 0 | 0 | 0 |
| 1980 | 9 | 1 | 1 | 9 |
| 1981 | 4 | 2 | 4 | 8 |
| 1982 | 5 | 3 | 9 | 15 |
| 1983 | 10 | 4 | 16 | 40 |
| `sumx_t` =47 | `sumu`=0 | `sumu^2=60` | `square` |
The equation of trend line is xt= a' + b'u.
The normal equations are,
`sumx_t = na^' + b^' sumu` ...(1)
`sumux_t = a^'sumu + b^'sumu^2` ...(2)
Here, n = 9, `sumx_t = 47, sumu= 0, sumu^2 = 60`
By putting these values in normal equations, we get
47 = 9a' + b' (0) ...(3)
40 = a'(0) + b'(60) ...(4)
From equation (3), we get a' = `square`
From equation (4), we get b' = `square`
∴ the equation of trend line is xt = `square`
