Question

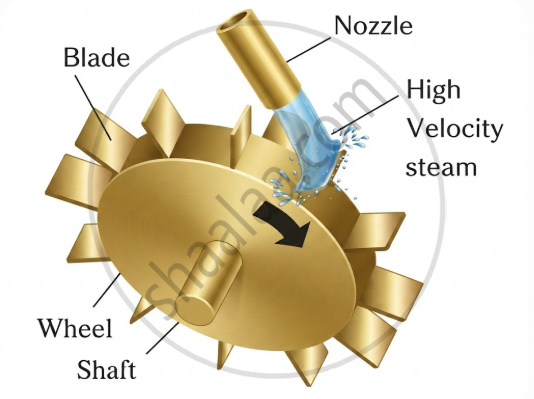

Observe the given diagram and answer the questions given below.

1. Explain the diagram.
2. Answer the questions with the help of a diagram.
3. What is the name of machine given in the diagram.
4. Write down the function of this machine in short.
5. How does it gets/forms the motion.

Answer 1

1. Explain the diagram: The diagram illustrates the core mechanism of a steam turbine. It shows a high-velocity jet of steam directed through a nozzle onto the blades of a wheel mounted on a rotating shaft, converting kinetic energy into rotational motion.
2. Answer the questions with the help of a diagram: (This refers to using the illustrated components – nozzle, blades, wheel, and shaft – to answer subsequent functional questions about energy conversion).
3. What is the name of the machine given in the diagram: steam turbine (or turbine wheel component of a thermal power plant)
4. Write down the function of this machine in short: Its primary function is to convert the kinetic and thermal energy of high-pressure, high-velocity steam into mechanical (rotational) energy to drive an electric generator.
5. How does it get/forms the motion High-velocity: steam exiting from the nozzle strikes the angled blades attached to the wheel, exerting a force that causes the wheel and its central shaft to spin rapidly.
