Question

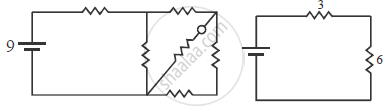

In the circuit shown in the figure, find the value of the current shown in the ammeter A.
Advertisements
Solution

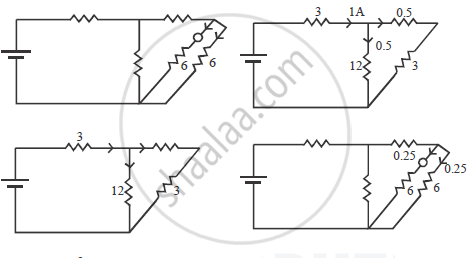

∴ current through ammeter is 0.25 A
`I=9/9 1A`
