Question

Explain a linked list with suitable example having six nodes with properly labeled diagram.

Answer 1

A linked list is a linear data structure in which elements are not stored in contiguous memory locations. Each element, called a node, contains two parts:

1. Data – stores the value
2. Next (Link/Pointer) – stores the address of the next node

The last node points to NULL, indicating the end of the list.

struct Node
{
    int data;
    Node* next;
};

Example: Linked List with Six Nodes

Let us create a linked list containing six values:

10, 20, 30, 40, 50, 60

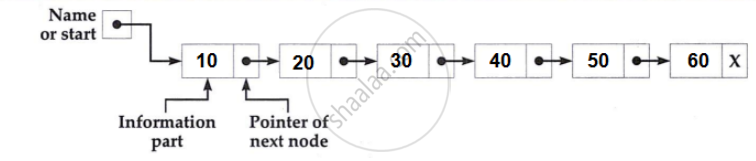

Properly Labelled Diagram

Explanation of the Diagram:

• HEAD stores the address of the first node.
• Each node has two fields:
  • Left part → Data
  • Right part → Next pointer
• Each node points to the next node in sequence.
• The last node points to NULL, showing the end of the list.
