Question
Draw the tree structure for the following expression:
Y = (A + B)/[(C * D + E)]
Diagram
Advertisements
Solution
Expression without assignment
(A + B)/(C ∗ D + E)
Main operator = /
Left subtree = A + B
Right subtree = (C * D + E)

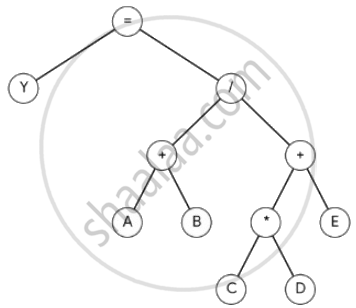

Expression Tree Diagram:
