Question
Construct a right-angled triangle in which: Side AB = 4.5 cm and hypotenuse AC = 7 cm
Advertisements
Solution

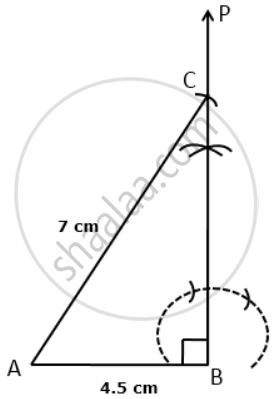

Steps:
1. Draw AB = 4.5cm
2. At B construct a ray BP such as ∠ABP = 90°
3. With A as a centre and radius 7cm, draw an arc to cut BP at C.
4. Join AC.
Thus, ABC is the required triangle.
