Question
Construct a quadrilateral ABCD, when:
AD = AB = 4 cm, BC = 2.8 cm, CD = 2.5 cm and angle BAD = 45°.
Advertisements
Solution

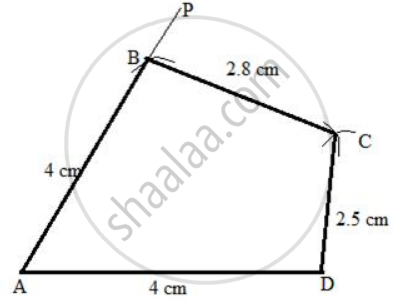

Steps:
1. Draw AD = 4cm.
2. Draw AP such that ∠A = 45°.
3. With A as a center with radii, 4 cm draw an arc at B on AP.
4. Now taking B and D as a center and radii 2.8 cm and 2.8 cm draw arcs cutting each other at C.
5. Now join BC and CD.
ABCD is the required quadrilateral.
