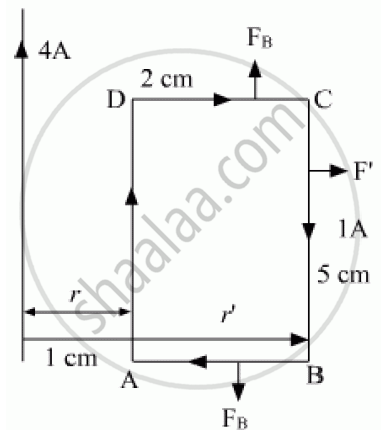

A rectangular loop of wire of size 2 cm × 5 cm carries a steady current of 1 A. A straight long wire carrying 4 A current is kept near the loop as shown. If the loop and the wire are coplanar, find (i) the torque acting on the loop and (ii) the magnitude and direction of the force on the loop due to the current carrying wire.
Advertisements
उत्तर
(1) `vectau=vecM xx vecB = MBsintheta`
Here M and B have the same direction
θ = 0
`|vectau| = MBsintheta =0`
`(2) \text{We know } vecF_B = ivecl xx vecB`
On line AB, and CD magnetic forces are equal and opposite. So they cancel out each other. Magnetic force on line AD.
`vecF = ivecl xx vecB` (Attractive)
=ilB [l =5 cm =0.05 cm]
`because B= (mu_0I)/(2pir)`
`|vecF| = (uiIl)/(2pir)` (Attractive)
Magnetic force on line CB.
`vecF = ivecl xx vecB` [Repulsive]
`=>F' = |vecF'| =ilB'`
`because B' =(mu_0I)/(2pir')`
`F' = (mu_0iIl)/(2pir')` [repulsive]
So, net force
`F_n = F-F'`
`=(mu_0iIl)/(2pi) [1/r - 1/r']`
Given I = 4A
I = 1 A
R = 1 cm = 0.01 m
r′ = (1 + 2) cm = 0.03 m
l = 5 cm = 0.05 m
Plugging in the values
`F = 2 xx 10^-7 (4) (1)(0.05)[1/(0.01) - 1/(0.03)]`
`= 8 xx 10^-7 xx 5 [1/1 - 1/3]`
`= 40 xx 10^-7 [2/3]`
`= 26.66 xx 10^-7`
