प्रश्न
What is a solenoid? Why do we usually keep its diameter small in comparison to its length?
Advertisements
उत्तर

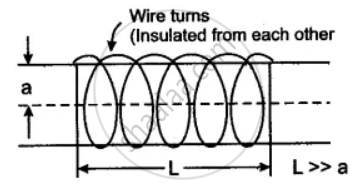

If a conducting wire (coated with an insulating paint or varnish) is closely wound on a (long) cylindrical core, the resulting coil is referred to as solenoid. It is usual to keep the diameter of the solenoid small compared to its length. This is done to bring about a greater degree of uniformity (and simplicity) in the axial magnetic field of the solenoid.
