प्रश्न

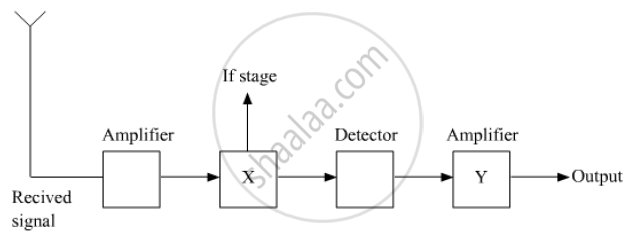

In the given block diagram of a receiver, identify the boxes labeled as X and Y and write their functions.
Advertisements
उत्तर
X → If stage → Intermediate frequency stage to change the carrier frequency to lower frequency.
Y → Amplifier → It amplifies the signal i.e. it increase the amplitude of the detected signal to compensate the attenuation of the signal. The detected signal may not be strong enough to use.
