प्रश्न
- Plot the points A (3, 5) and B (–2, –4). Use 1 cm = 1 unit on both the axes.
- A’ is the image of A when reflected in the x-axis. Write down the co-ordinates of A’ and plot it on the graph paper.
- B’ is the image of B when reflected in the y-axis, followed by reflection in the origin. Write down the co-ordinates of B’ and plot it on the graph paper.
- Write down the geometrical name of the figure AA’BB’.
- Name the invariant points under reflection in the x-axis.
Advertisements
उत्तर

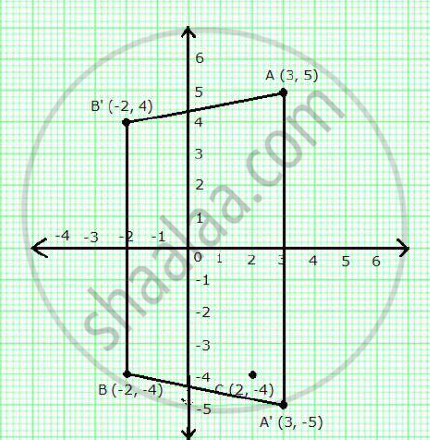

- The points A (3, 5) and B (–2, –4) can be plotted on a graph as shown.
- A’ = Image of A when reflected in the x-axis = (3, –5)
- C = Image of B when reflected in the y-axis = (2, –4) B’ = Image when C is reflected in the origin = (–2, 4)
- Isosceles trapezium
- Any point that remains unaltered under a given transformation is called an invariant. Thus, the required two points are (3, 0) and (–2, 0).
APPEARS IN
संबंधित प्रश्न
Attempt this question on graph paper.
- Plot A (3, 2) and B (5, 4) on graph paper. Take 2 cm = 1 unit on both the axes.
- Reflect A and B in the x-axis to A’ and B’ respectively. Plot these points also on the same graph paper.
- Write down:
- the geometrical name of the figure ABB’A’;
- the measure of angle ABB’;
- the image of A” of A, when A is reflected in the origin.
- the single transformation that maps A’ to A”.
Points (3, 0) and (–1, 0) are invariant points under reflection in the line L1; points (0, –3) and (0, 1) are invariant points on reflection in line L2.
- Name or write equations for the lines L1 and L2.
- Write down the images of the points P (3, 4) and Q (–5, –2) on reflection in line L1. Name the images as P’ and Q’ respectively.
- Write down the images of P and Q on reflection in L2. Name the images as P” and Q” respectively.
- State or describe a single transformation that maps P’ onto P''.
- Point P (a, b) is reflected in the x-axis to P’ (5, –2). Write down the values of a and b.
- P” is the image of P when reflected in the y-axis. Write down the co-ordinates of P”.
- Name a single transformation that maps P’ to P”.
A point P (–2, 3) is reflected in line x = 2 to point P’. Find the co-ordinates of P’.
A point P (a, b) is reflected in the x-axis to P’ (2, –3). Write down the values of a and b. P” is the image of P, reflected in the y-axis. Write down the co-ordinates of P”. Find the co-ordinates of P”’, when P is reflected in the line, parallel to y-axis, such that x = 4.
The point P (5, 3) was reflected in the origin to get the image P’.
- Write down the co-ordinates of P’.
- If M is the foot of the perpendicular from P to the x-axis, find the co-ordinates of M.
- If N is the foot of the perpendicular from P’ to the x-axis, find the co-ordinates of N.
- Name the figure PMP’N.
- Find the area of the figure PMP’N.
The point P (3, 4) is reflected to P’ in the x-axis; and O’ is the image of O (the origin) when reflected in the line PP’. Write:
- the co-ordinates of P’ and O’.
- the length of the segments PP’ and OO’.
- the perimeter of the quadrilateral POP’O’.
- the geometrical name of the figure POP’O’.
P and Q have co-ordinates (0, 5) and (–2, 4).
- P is invariant when reflected in an axis. Name the axis.
- Find the image of Q on reflection in the axis found in (a).
- (0, k) on reflection in the origin is invariant. Write the value of k.
- Write the co-ordinates of the image of Q, obtained by reflecting it in the origin followed by reflection in x-axis.
The triangle ABC, where A is (2, 6), B is (–3, 5) and C is (4, 7), is reflected in the y-axis to triangle A'B'C'. Triangle A'B'C' is then reflected in the origin to triangle A"B"C".
- Write down the co-ordinates of A", B" and C".
- Write down a single transformation that maps triangle ABC onto triangle A"B"C".
Points (3, 0) and (−1, 0) are invarient points under reflection in the line L1; point (0, −3) and (0, 1) are invarient points on reflection in line L2.
- Write the equation of the line L1 and L2.
- Write down the images of points P(3, 4) and Q(−5, −2) on reflection in L1. Name the images as P' and Q' respectively.
- Write down the images of P and Q on reflection in L2. Name the image as P'' and Q'' respectively.
