Construct a parallelogram ABCD, when:
Base BC = 5.6 cm, diagonal BD = 6.5 cm and altitude = 3.2 cm.
Advertisements
उत्तर

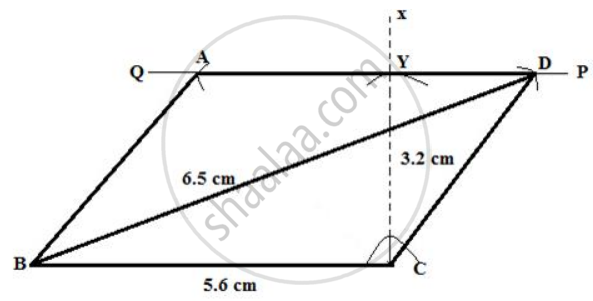

Steps:
1. Draw BC = 5.6 cm.
2. At C, draw CX perpendicular to BC.
3. with C as a centre and taking radius 3.2 cm to draw an arc to cut CX at Y.
4. Through Y draw a straight line PQ parallel to BC.
5. With B as a centre and radius, 6.5 cm draw an arc to meet PQ at D.
6. With D as a centre and radius equal to 5.6 cm, draw an arc to meet PQ at A.
7. Join BA, BD and CD.
ABCD is the required parallelogram.
APPEARS IN
संबंधित प्रश्न
Construct a parallelogram ABCD, when:
AB = 4.4 cm, AD = 6.2 cm and AC = 4.8 cm.
Draw parallelogram ABCD with the following data:
AB = 6 cm, AD = 5 cm and ∠DAB = 45o.
Let AC and DB meet in O and let E be the mid-point of BC. Join OE.
Prove that:
(i) OE // AB
(ii) OE = `1/2` AB.
Construct a parallelogram ABCD, when:
Diagonal AC = 6.4 cm, diagonals BD = 8.2 cm and angle between the diagonals = 60°.
The perpendicular distance between the pair of opposite sides of a parallelogram are 3 cm and 4 cm, and one of its angles measures 60o. Using a ruler and compasses only,
construct the parallelogram.
Construct a parallelogram ABCD, when:
AB = 4.5 cm, ∠B = 120° and the distance between AB and DC = 3.0 cm.
Construct a parallelogram ABCD, if :
AD = 4 cm, DC = 5 cm and diagonal BD = 7 cm.
Construct a parallelogram ABCD, if :
lengths of diagonals AC and BD are 6.3 cm and 7.0 cm respectively, and the angle between them is 45°.
Using ruler and compasses only, construct a parallelogram ABCD, in which : AB = 6 cm, AD = 3 cm and ∠DAB = 60°. In the same figure draw the bisector of angle DAB and let it meet DC at point P. Measure angle APB.
Construct a parallelogram ABCD. Given:
AB = 5.5cm, BC = 3.5cm, ∠B = 75°
Construct a parallelogram ABCD in which AB = 4.5cm, ∠A = 105° and the distance between AB and CD is 3.2cm.
