प्रश्न

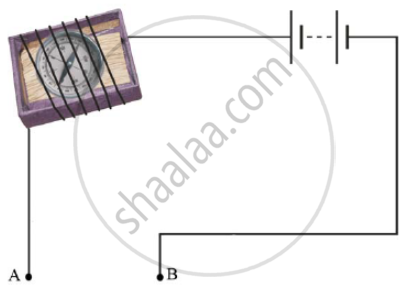

You are provided with a magnetic compass, an empty matchbox, a battery of two cells and connecting wires. Using these objects, how will you make a tester for testing an electric circuit? Draw the necessary circuit diagram and explain.
Advertisements
उत्तर
Whenever current flows through the circuit the magnetic compass needle shows deflection due to magnetic effect of current.
APPEARS IN
संबंधित प्रश्न
If you pass current through copper sulphate solution, copper gets deposited on the plate connected to the ______ terminal of the battery.
Prepare a list of objects around you that are electroplated.
In an electrolyte the current is due to the flow of ______.
Boojho and Paheli performed experiments taking similar bulbs and cells but two different solutions A and B as shown in the following figure.
 |
 |
| Boojho's Experiment | Paheli's Experiment |
| (A) | (B) |
They found that the bulb in the setup A glows more brightly as compared to that of the setup B. You would conclude that
Boojho’s uncle has set up an electroplating factory near his village. He should dispose off the waste of the factory
Paheli set up an experiment using liquid A in the beaker as shown in the following figure. She observed that the bulb glows. Then she replaced the liquid A by another liquid B. This time the bulb did not glow. Boojho suggested replacing the bulb by an LED. They observed that the LED glows. Explain.
Observe the following circuits carefully. In which circuit will the bulb glow? Write Yes or No in the blank space provided along each of the circuit given in the figure.
|
(a) |
|
______ |
|
(b) |
|
______ |
|
(c) |
|
______ |
|
(d) |
|
______ |
A chemical reaction happens when electricity passes through various conducting liquids.
Match the following
| 1. | Anode | a. | Conducting solution |
| 2. | Cathode | b. | Positive terminal |
| 3. | Ions | c. | Negative terminal |
| 4. | Electrolyte | d. | Positively or negatively charged |
State some advantages of electroplating.
