Question

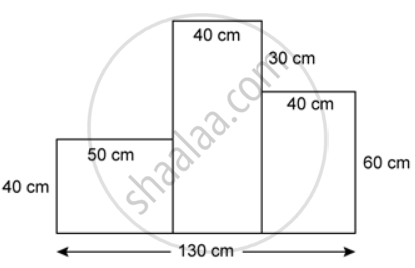

The given figure is a cross -section of a victory stand used in sports. All measurements are in centimetres. Assume all angles in the figure are right angles. If the width of the stand is 60 cm, find The space it occupies in cm³.

Answer 1

To find the volume, first find the area of the figure.

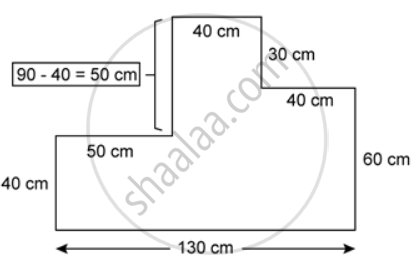

To find the area, we divide the figure into 3 different rectangles.
Rectangle 1 (left):
length = 50cm
width = 40cm
Area = length x width
= 50 x 40
= 2000cm²
Rectangle 2 (middle):
length = (60 + 30)cm = 90cm
width = 40cm
Area = length x width
= 90 x 40
= 3600cm²
Rectangle 3 (right):
length = 60cm
width = 40cm
Area = length x width
= 60 x 40
= 2400cm²
Total area
= 2000 + 3600 + 2400
= 8000cm²
Volume = Total area x length
= 8000 x 60
= 4,80,000cm³
∴ The space occupied is 4,80,000cm³.
