प्रश्न
Solve graphically
x = −3, y = 3
Advertisements
उत्तर
x = −3
| x | −3 | −3 | −3 | −3 |
| y | −3 | −2 | −2 | 3 |

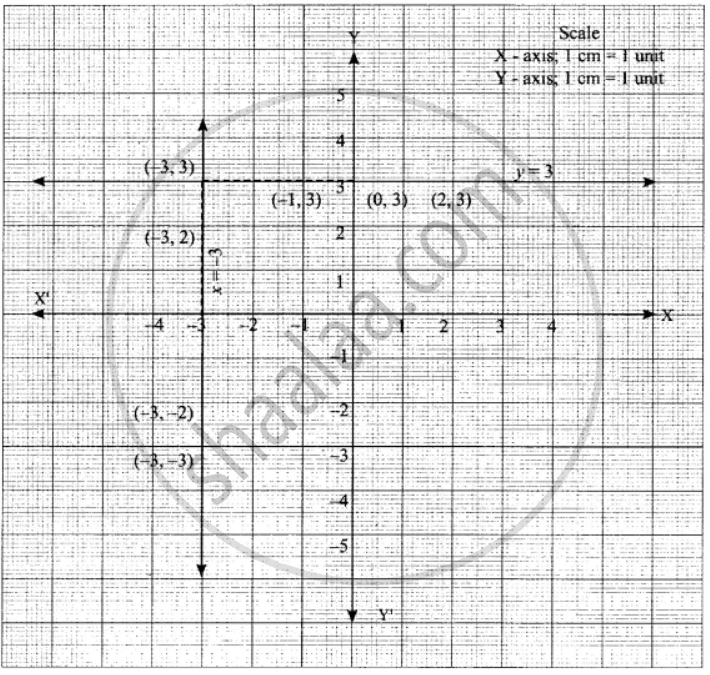

Plot the points (−3, −3), (−3, −2), (−3, 2) and (−3, 3) in the graph sheet
y = 3
| x | −3 | −1 | 0 | 2 |
| y | 3 | 3 | 3 | 3 |
Plot the points (−3, 3), (−1, 3), (0, 3) and (2, 3) in the same graph sheet
The two lines l1 and l2 intersect at (−3, 3)
∴ The solution set is (−3, 3)
APPEARS IN
संबंधित प्रश्न
Solve graphically the simultaneous equations given below. Take the scale as 2 cm = 1 unit on both the axes.
x - 2y - 4 = 0
2x + y = 3
The sides of a triangle are given by the equations y - 2 = 0; y + 1 = 3 (x - 2) and x + 2y = 0.
Find, graphically :
(i) the area of a triangle;
(ii) the coordinates of the vertices of the triangle.
The cost of manufacturing x articles is Rs. (50 + 3x). The selling price of x articles is Rs. 4x.
On a graph sheet, with the same axes, and taking suitable scales draw two graphs, first for the cost of manufacturing against no. of articles and the second for the selling price against the number of articles.
Use your graph to determine:
No. of articles to be manufactured and sold to break even (no profit and no loss).
The cost of manufacturing x articles is Rs.(50 + 3x). The selling price of x articles is Rs. 4x.
On a graph sheet, with the same axes, and taking suitable scales draw two graphs, first for the cost of manufacturing against no. of articles and the second for the selling price against the number of articles.
Use your graph to determine:
The profit or loss made when (a) 30 (b) 60 articles are manufactured and sold.
Using the same axes of co-ordinates and the same unit, solve graphically :
x + y = 0 and 3x - 2y = 10.
(Take at least 3 points for each line drawn).
The course of an enemy submarine, as plotted on rectangular co-ordinate axes, gives the equation 2x + 3y = 4. On the same axes, a destroyer's course is indicated by the graph x - y = 7. Use the graphical method to find the point at which the paths of the submarine and the destroyer intersect?
Find graphically the vertices of the triangle, whose sides have the equations 2y - x = 8, 5y -x = 14 and y = 2x - 1.
Find graphically the vertices of the triangle, whose sides are given by 3y = x + 18, x + 7y = 22 and y + 3x = 26.
Solve the following system of equations graphically
x - y + 1 = 0
4x + 3y = 24
Solve graphically
y = 2x + 1, y + 3x – 6 = 0
