प्रश्न
When does a vernier callipers has the positive error?
Advertisements
उत्तर

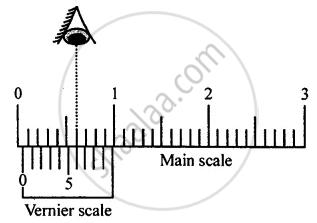

Positive Error: If the zero of the vernier scale is on the right-hand side of zero of the main scale, then the error is said to be positive and correction is said to be negative.
