प्रश्न
Minimize Z = 18x + 10y
Subject to
\[4x + y \geq 20\]
\[2x + 3y \geq 30\]
\[ x, y \geq 0\]
Advertisements
उत्तर
First, we will convert the given inequations into equations, we obtain the following equations:
4x + y = 20, 2x +3y = 30, x = 0 and y = 0
Region represented by 4x + y ≥ 20 :
The line 4x + y = 20 meets the coordinate axes at A(5, 0) and B(0, 20) respectively. By joining these points we obtain the line 4x + y = 20.
Clearly (0,0) does not satisfies the inequation 4x + y ≥ 20. So,the region in xy plane which does not contain the origin represents the solution set of the inequation 4x + y≥ 20.
Region represented by 2x +3y ≥ 30:
The line 2x +3y = 30 meets the coordinate axes at C(15,0) and D(0, 10) respectively. By joining these points we obtain the line
2x +3y = 30.Clearly (0,0) does not satisfies the inequation 2x +3y ≥ 30. So,the region which does not contain the origin represents the solution set of the inequation 2x+3y ≥ 30.
Region represented by x ≥ 0 and y ≥ 0:
Since, every point in the first quadrant satisfies these inequations. So, the first quadrant is the region represented by the inequations x ≥ 0, and y ≥ 0.

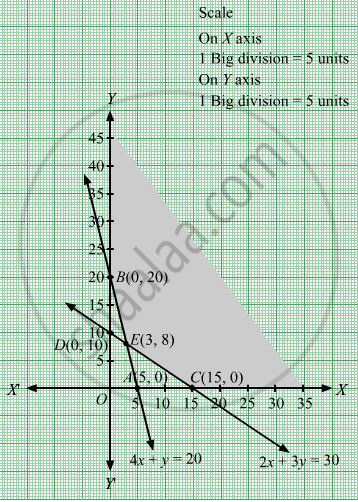

The feasible region determined by the system of constraints, 4x + y ≥ 20, 2x +3y ≥ 30,x ≥ 0, and y ≥ 0, are as follows.
The corner points of the feasible region are B(0, 20), C(15,0), E(3,8) and C(15,0).
The values of Z at these corner points are as follows.
| Corner point | Z = 18x + 10y |
| B(0, 20) | 18 × 0 + 10 × 20 = 200 |
| E(3,8) | 18 × 3 + 10 × 8 = 134 |
| C(15,0) | 18 × 15 + 10 ×0 = 270 |
Therefore, the minimum value of Z is 134 at the point E(3,8). Hence, x = 3 and y =8 is the optimal solution of the given LPP.
Thus, the optimal value of Z is 134.
