प्रश्न
Construct a quadrilateral ABCD, such that AB = BC = CD = 4.4 cm, ∠B = 90° and ∠C = 120°.
Advertisements
उत्तर
The rough figure is as follow

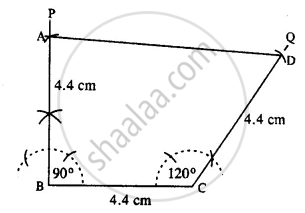

The Actual figure is constructed as follow:
Steps :
- Draw BC = 4.4 cm.
- At B, draw ∠PBC = 90°.
- Cut BA = 4.4 cm.
- At C, draw ∠QCB = 120°.
- Cut CD = 4.4 cm.
- Join AD.
Thus ABCD is the required quadrilateral.
