Write a short note on XNOR gate.
Advertisements
उत्तर

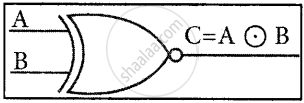

The XNOR (exclusive – NOR) gate is a combination XOR gate followed by an inverter. Its output is “true” if the inputs are the same, and “false” if the inputs are different. In simple words, the output is 1 if the input is the same, otherwise, the output is 0. The logic symbol of the XNOR gate is
The truth table for XNOR Gate is
| Input | Output | |
| A | B | C |
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
