Question

Inspect the wiring in a room in your house. Find out how the fan, lights and plug points are connected with the Mains supply. Draw a circuit diagram based on your observations. Is your circuit diagram similar to the circuit we had learned in the chapter?

Answer 1

Observations:

• Connection: The fan, lights, and plug points are all connected in a parallel configuration across the Mains supply.
• Switch: All individual switches are correctly connected to the Live wire for safety.

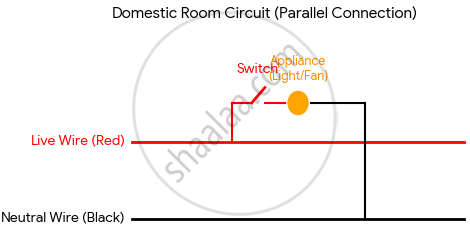

Diagram:

Similarity:

Yes, this circuit diagram is completely similar to the domestic electrical circuit learned in the chapter, because both use a parallel network to provide equal voltage to all components.
