Question

Explain the programming model for 32-bit version of x-86 family with suitable diagram.

Answer 1

• The 8086 and 8088 processors form the basic programming model for the entire x-86 family of advanced microprocessors.
• The later processors in the x-86 family offer higher performance because they operate at greater speeds, use 32-bit registers instead of 16-bit registers, and support improved addressing methods.

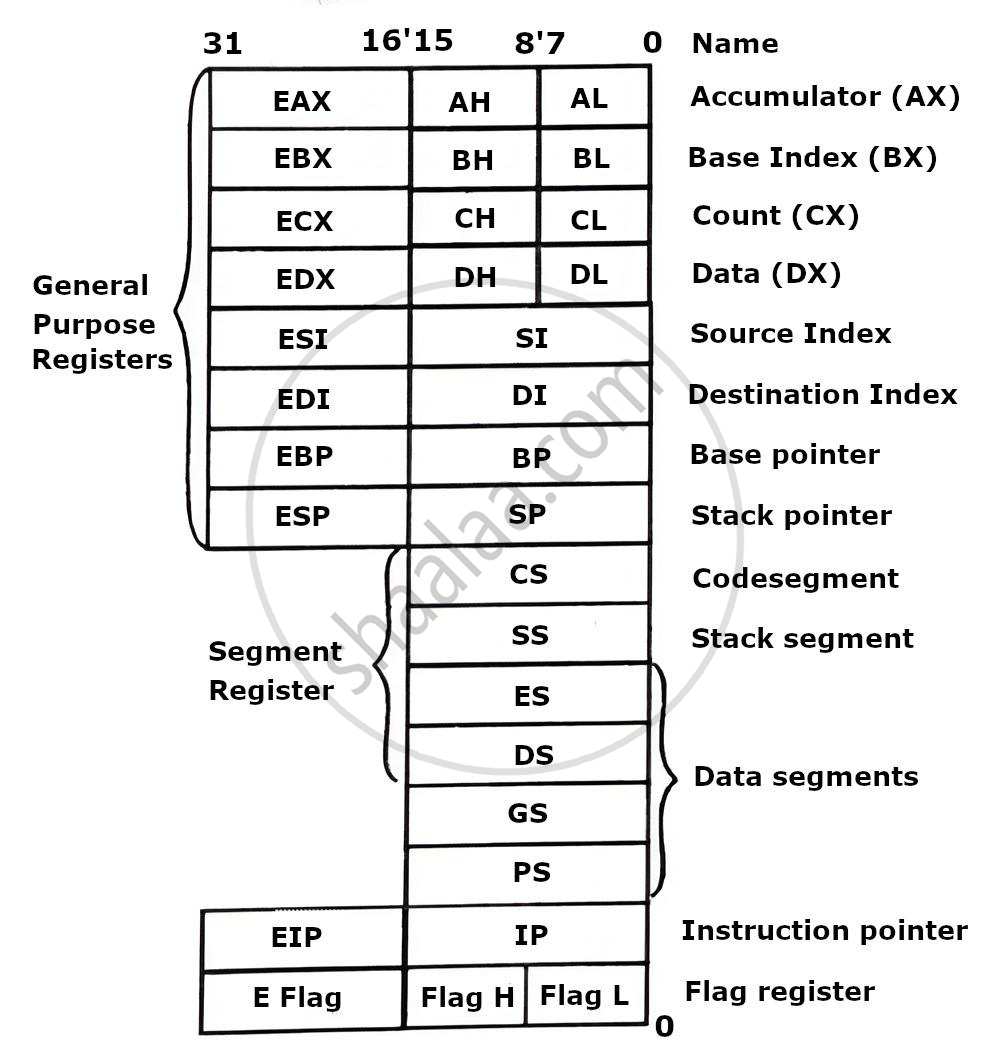

• The following diagram illustrates the programming model of the 32-bit x-86 family, which is used in 32-bit microprocessors such as the 386, 486, and Pentium.

• The 32-bit x-86 programming model is made up of three groups of registers.
• The first group includes eight general-purpose registers named EAX, EBX, ECX, EDX, ESI, EDI, ESP, and EBP. The prefix E indicates that these registers are extended in size. Each register can be accessed as 8-bit, 16-bit, or full 32-bit registers, and they are mainly used to store data during processing and calculations.
• The second register group is known as the segment register group. It includes the code segment, stack segment, and four data segment registers - DS, ES, FS, and GS. These are 16-bit registers that control operations involving external memory, and they are used for address calculation and data transfer.
• The third group of registers consists of the Instruction Pointer (IP) and the flag register, which are used to track program execution and processor status.
